3D Block A Embroidery Design: Varsity Letter Machine Embroidery File

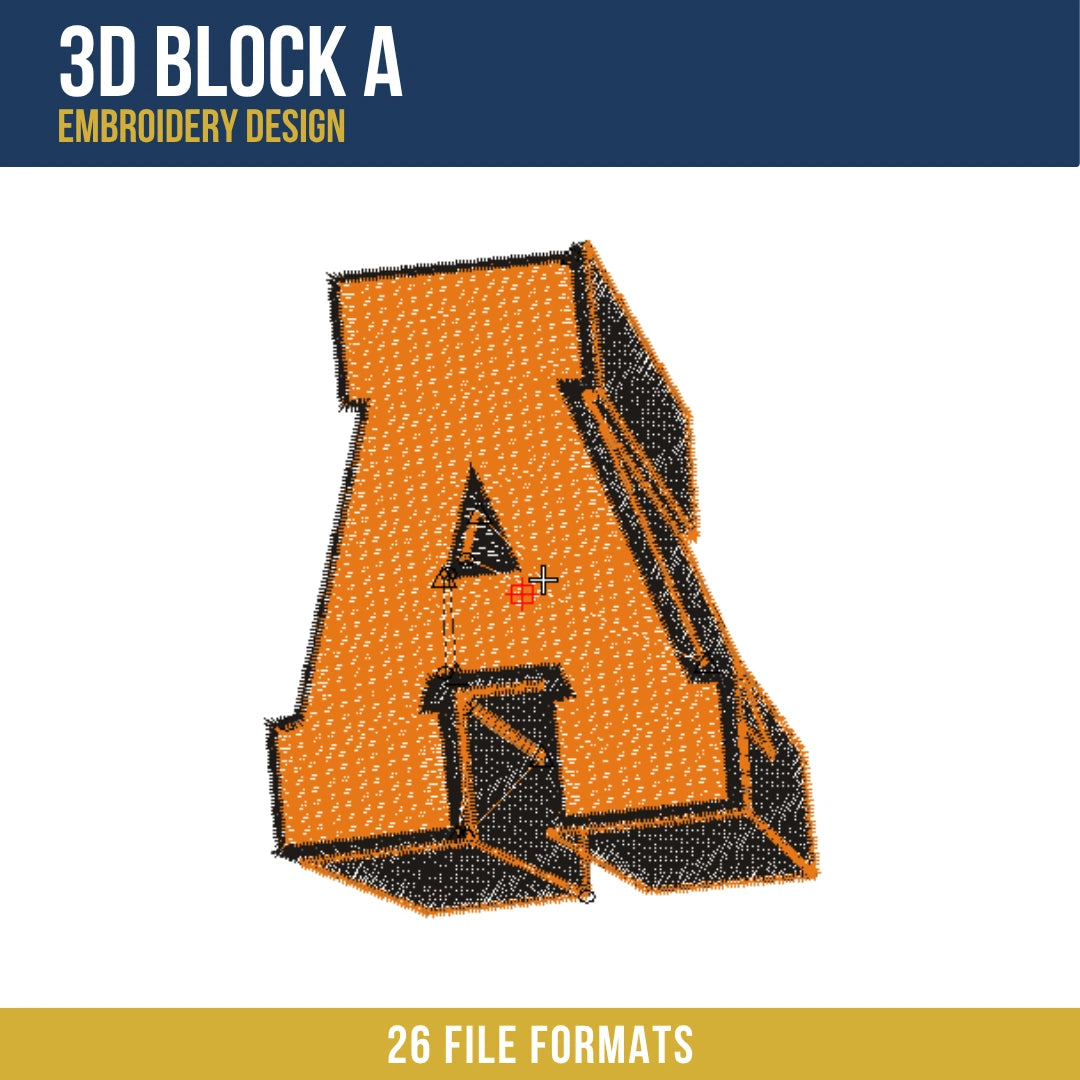

This 3D Block A embroidery design is a compact, sport-ready machine embroidery file featuring a bold varsity-style block letter A rendered with a full perspective shadow to create a convincing three-dimensional extruded effect. The face of the letter is filled in bright orange with dense horizontal satin stitching, while the extruded depth panels running along the right and bottom edges are filled in dark charcoal gray with diagonal directional fills that contrast sharply against the face color. All edges and interior counter outlines are finished in black satin stitch. Total stitch count is 11,555 stitches.

What sets this design apart from other varsity letter embroidery files is the precision required to simulate three-dimensional extrusion at a small 2.75 x 3.35 inch footprint. The depth panels along the right side and base of the letter are narrow angled wedges, some tapering to very fine points at the corners, and each must carry a consistent diagonal fill that reads as a receding surface without the columns collapsing or blurring into the face fill at the shared border. Achieving a legible 3D illusion at this scale demands tighter fill control than larger letter designs where the same effect is far more forgiving.

Design Details

The letter face is the dominant element, occupying the upper-left portion of the overall footprint. It is filled with dense horizontal satin stitches in orange, running uniformly across the full face including the crossbar and both angled legs of the A. The interior counter triangle at the center of the A is cut out as a void, with its edges defined by a fine black satin outline rather than a filled shape, preserving the open negative space of the letterform. The crossbar carries a narrow interior counter window as well, defined by the same black satin border treatment. The extruded depth panels extend from the right edge of the letter face and from the base of both legs, projecting downward and to the right to simulate a light source coming from the upper-left. These depth panels are filled with a diagonal charcoal gray directional fill running at an angle perpendicular to the face fill direction, creating an immediate visual contrast that reads as a shadowed side plane. The corner junction points where face panels and depth panels meet are finished with small triangular fill sections in orange, representing the visible corner edges of the extrusion. The entire outer perimeter and all internal color boundaries are outlined with a black satin stitch border.

Size Guide

Formats Included

• PES, PEC - Brother, Baby Lock, Bernina
• DST, DSB - Tajima
• JEF, SEW - Janome, Elna
• VP3, VIP, SHV, HUS - Husqvarna Viking
• PCS, PCQ, PCD - Pfaff
• XXX - Singer
• ART - Bernina software
• 000 - Singer/generic
• 100 - Toyota
• CND - Melco/Conde
• CSD - Singer/POEM
• DGT - Barudan
• DSZ - Tajima older
• EMD - Elna
• EXP - Melco/Bernina
• INF - design info

Digitizing Quality

The sharpest technical challenge in this design is managing the boundary between the orange face fill and the charcoal depth panels at small scale. Because both fills are dense and the boundary between them runs at an angle, thread from each fill zone can encroach on the adjacent color if underlay is not tightly controlled. A edge-walk underlay was applied along every face-to-depth boundary to lock the fabric and define a clean stitch wall before either fill is laid down, keeping the color separation sharp at 2.75 x 3.35 inches where even a fraction of a millimeter of bleed is visible.

The narrow depth panel wedges that taper to fine points at the letter corners required special handling. At the smallest corner points, the fill column width drops below what standard satin fill handles cleanly, so the digitizer transitioned to manual stitch placement at the final few columns of each taper, preventing thread buildup at the points and keeping the corners visually crisp on the finished embroidery.

The interior counter triangle of the A is a void that sits entirely surrounded by dense orange satin fill. At small letter sizes, the pull force from the surrounding fill can distort or partially close an open counter if the design is not sequenced to stitch outward from the counter boundary. The fill sequence in this design stitches the counter outline first as a locking element, then builds the face fill outward from it, preserving the open triangle shape through the full stitch run.

License

This design is licensed for commercial use on finished physical goods. You may sell embroidered items made with this file without per-item royalty. Digital files, including all included formats, may not be resold, redistributed, or shared in any form, whether modified or unmodified.

Instant Download

Files are available immediately after purchase. This listing includes 1 size in 26 file formats, covering every major home and commercial embroidery machine brand. Download, unzip, and load directly into your machine or embroidery software.
