Australian Flag Embroidery Design: Australia National Flag Machine Embroidery File

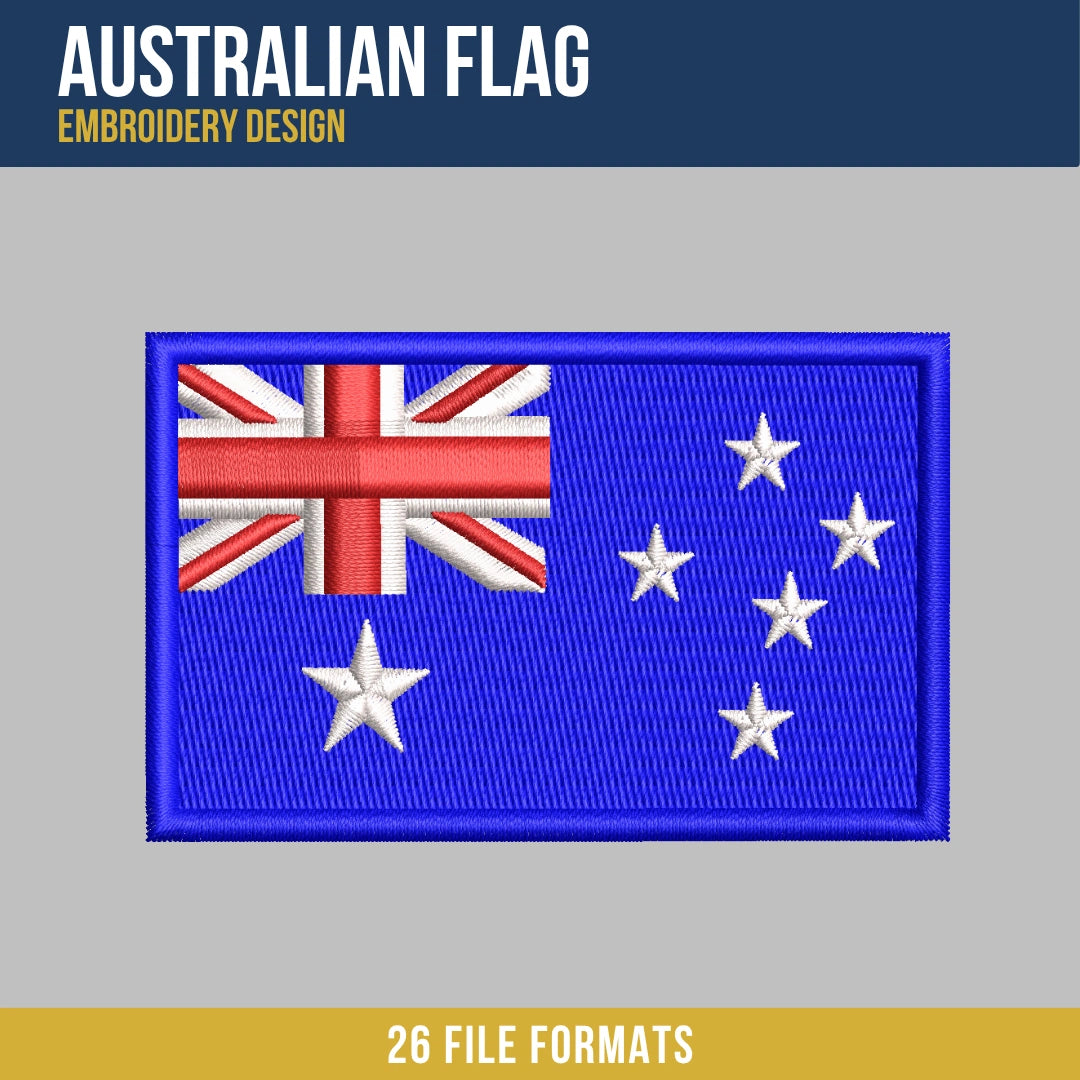

This Australian Flag embroidery design is a flag patch-style machine embroidery file reproducing the Australian national flag in accurate proportions, rendered in royal blue, red, and white thread. The design is constructed as a filled rectangular flag field in blue with a Union Jack canton in the upper-left corner, a large seven-pointed Commonwealth Star below it, and the five stars of the Southern Cross arranged across the right half of the flag. The entire design is bordered by a blue satin stitch frame that gives the output the appearance of a finished iron-on patch. Total stitch count is 10,418 stitches.

What distinguishes this design from other national flag embroidery files is the layered complexity of the Union Jack canton, which requires three separate color passes of white and red cross and diagonal fills to correctly reproduce the overlapping St George's Cross, St Andrew's Cross, and St Patrick's Cross within a small upper-left quadrant. Reproducing the Union Jack accurately at canton scale within a 3.27 x 2.07 inch flag footprint demands a level of small-format cross and diagonal fill precision that no other element on the flag requires.

Design Details

The flag field is the base layer, filled entirely with a dense horizontal directional fill in royal blue covering the full rectangular area. The Union Jack canton occupies the upper-left quarter of the flag. Within it, the horizontal and vertical bars of the St George's Cross are filled in red satin, each bar edged with narrow white satin borders on both sides. The diagonal arms of the St Andrew's Cross run from corner to corner of the canton in white, and the narrower diagonal arms of the St Patrick's Cross in red run offset alongside them, producing the characteristic counterchanged diagonal pattern of the Union Jack. All cross and diagonal elements within the canton are outlined with the blue field color to separate them from one another. The Commonwealth Star sits below the canton at the lower-left, rendered as a large seven-pointed star in white satin fill with all seven points filled individually. Across the right half of the flag, the Southern Cross is represented by four seven-pointed stars of equal size arranged in a kite pattern, plus one smaller five-pointed star at center-right. All Southern Cross stars are filled in white satin. The outer border of the entire flag is finished with a blue satin stitch frame replicating the edge finish of a patch.

Size Guide

Formats Included

This design is delivered in 26 file formats compatible with all major machine brands: PES, PEC (Brother, Baby Lock, Bernina) | DST, DSB (Tajima) | JEF, SEW (Janome, Elna) | VP3, VIP, SHV, HUS (Husqvarna Viking) | PCS, PCQ, PCD (Pfaff) | XXX (Singer) | ART (Bernina software) | 000 (Singer/generic) | 100 (Toyota) | CND (Melco/Conde) | CSD (Singer/POEM) | DGT (Barudan) | DSZ (Tajima older) | EMD (Elna) | EXP (Melco/Bernina) | INF (design info)

Digitizing Quality

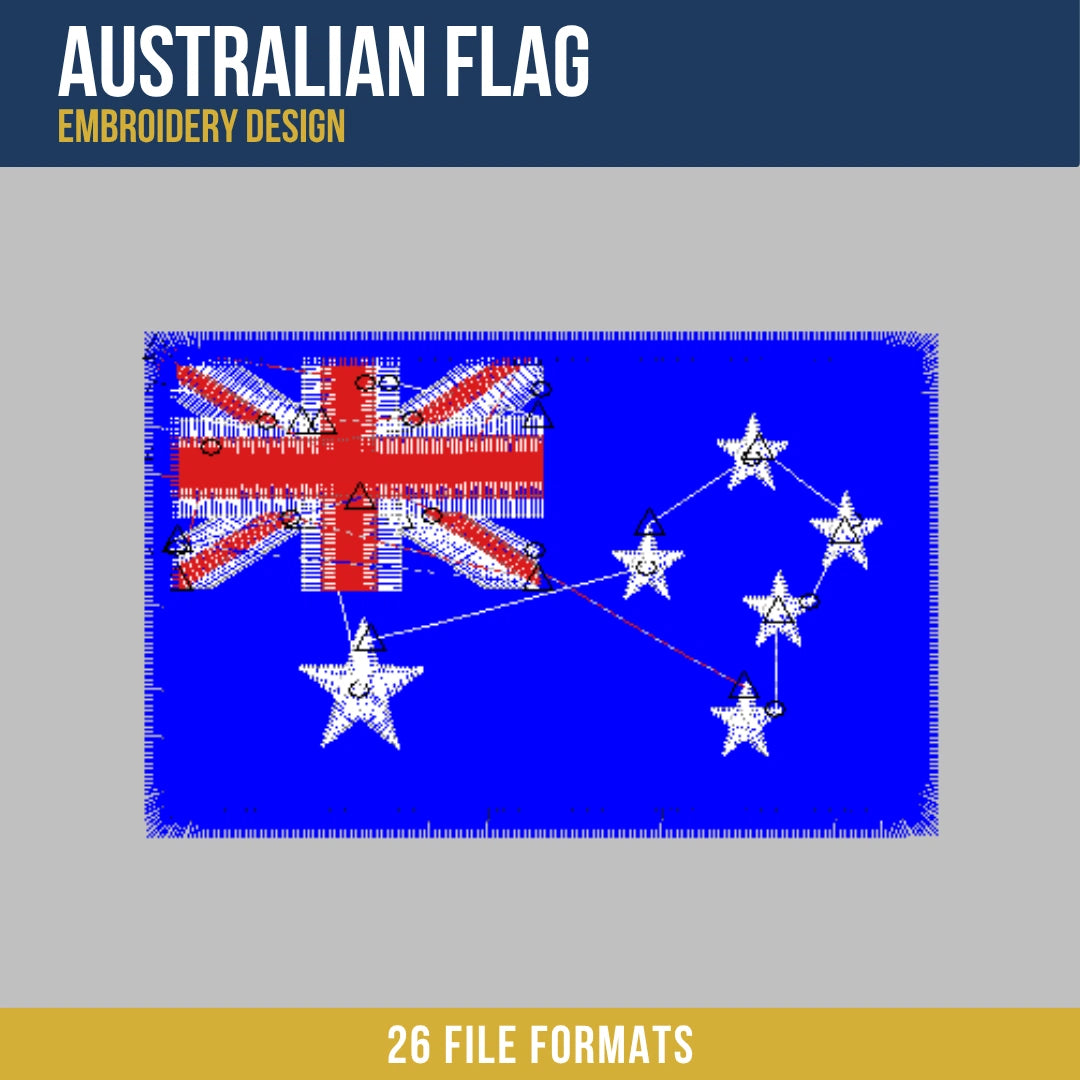

The primary technical challenge in this design is reproducing the counterchanged diagonal crosses of the Union Jack within the canton at small scale. The offset red St Patrick's Cross diagonals must sit precisely beside the white St Andrew's Cross diagonals without the two merging into a single blurred band. Each diagonal arm was digitized as an independent fill zone with its own underlay, and the sequencing places the white diagonals first followed by the red offset arms so that each color sits cleanly against the other without encroachment at the shared boundary.

The star points on both the Commonwealth Star and the Southern Cross stars required careful taper management. Each point narrows to a fine tip, and at the scale of the smaller Southern Cross stars the point tips are only a few stitches wide. Manually tapered column fills were applied to each star point rather than automatic satin fill, stepping the column width down to single stitches at the very tip to keep the points sharp and clean rather than blunt or puckered.

The dense blue field fill covering the full flag rectangle creates significant cumulative thread weight across the base layer, which can cause fabric draw-in along the flag edges before the border satin is applied. A full-coverage grid underlay was used beneath the blue field fill to pre-stabilize the fabric evenly across the entire rectangle, and the border satin stitch was sequenced as the final element so it locks down any remaining edge movement and delivers a flat, even patch outline on the finished piece.

License

This design is licensed for commercial use on finished physical goods. You may sell embroidered items made with this file without per-item royalty. Digital files, including all included formats, may not be resold, redistributed, or shared in any form, whether modified or unmodified.

Instant Download

Files are available immediately after purchase. This listing includes 1 size in 26 file formats, covering every major home and commercial embroidery machine brand. Download, unzip, and load directly into your machine or embroidery software.
