Brain Structure Embroidery Design: Anatomical Top View Machine Embroidery File

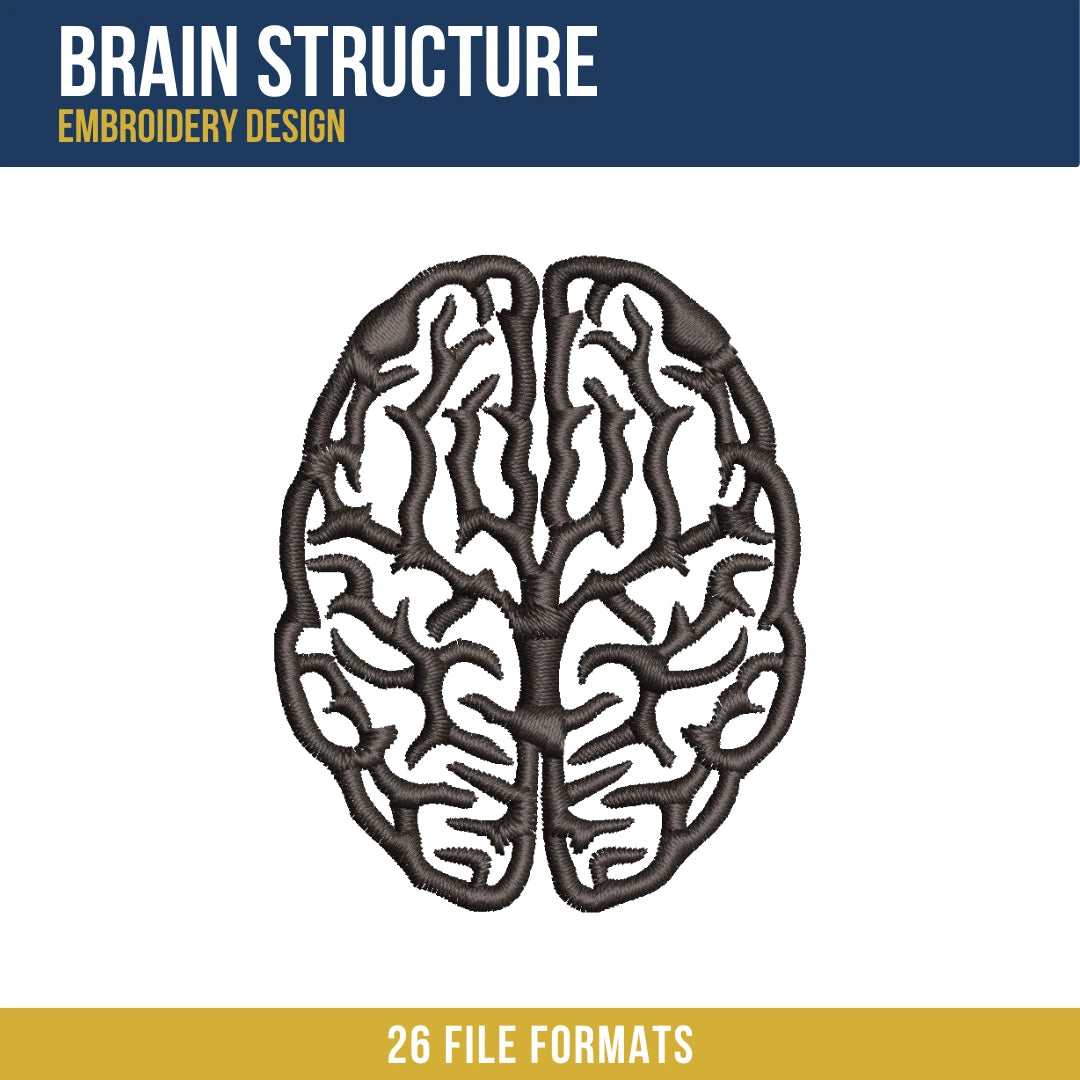

The Brain Structure embroidery design is a top-down anatomical brain outline rendered entirely as an open-channel satin line drawing in dark charcoal thread. The design depicts both cerebral hemispheres viewed from above, with the outer cortical boundary stitched as a continuous wide satin border and the interior gyri and sulci rendered as a network of branching satin channels that leave the fabric exposed between them. There is no solid fill anywhere in the design: the entire form is built from stitched lines alone, with the open negative spaces defining the anatomical structure. Total stitch count is 4,432 stitches at 2.00 x 2.48 inches.

What makes this design technically distinct from other outline-style embroideries in the same collection is the sheer number of interior branch terminations. Every gyrus channel branches, narrows, and ends at a blunt tip somewhere within the interior of the design, and each of those endpoints is a visible focal point surrounded by open fabric. Unlike outline designs where line ends are hidden at the outer perimeter or beneath overlapping elements, every interior channel tip in this brain design terminates in open space where a ragged or poorly capped end would be immediately visible. This required individual endpoint finishing on dozens of internal satin segments, making the per-path quality control demand far higher than a comparably sized continuous-line design.

Design Details

The dominant element is the outer brain boundary, a wide oval satin border that traces the full cortical silhouette of both hemispheres, narrowing slightly at the top center where the two lobes meet and widening at the lateral edges. Running from top to bottom through the center of the design is the interhemispheric fissure, a straight vertical satin channel that divides the left and right hemispheres. From this central fissure and from the outer border, numerous branching satin channels extend inward and laterally, each one representing a major sulcus of the cortical surface. The channels vary in width, with primary sulci rendered as wider bands and secondary branches tapering as they extend toward the cortical interior. Each branch terminates in a blunt rounded cap that replicates the appearance of a gyral fold ending. The mirroring between left and right hemispheres is approximate rather than exact, preserving the naturalistic asymmetry of a real brain viewed from above. The entire design is single-color dark charcoal with no color stops required.

Size Guide

Formats Included

• PES, PEC - Brother, Baby Lock, Bernina
• DST, DSB - Tajima
• JEF, SEW - Janome, Elna
• VP3, VIP, SHV, HUS - Husqvarna Viking
• PCS, PCQ, PCD - Pfaff
• XXX - Singer
• ART - Bernina software
• 000 - Singer/generic
• 100 - Toyota
• CND - Melco/Conde
• CSD - Singer/POEM
• DGT - Barudan
• DSZ - Tajima older
• EMD - Elna
• EXP - Melco/Bernina
• INF - design info

Digitizing Quality

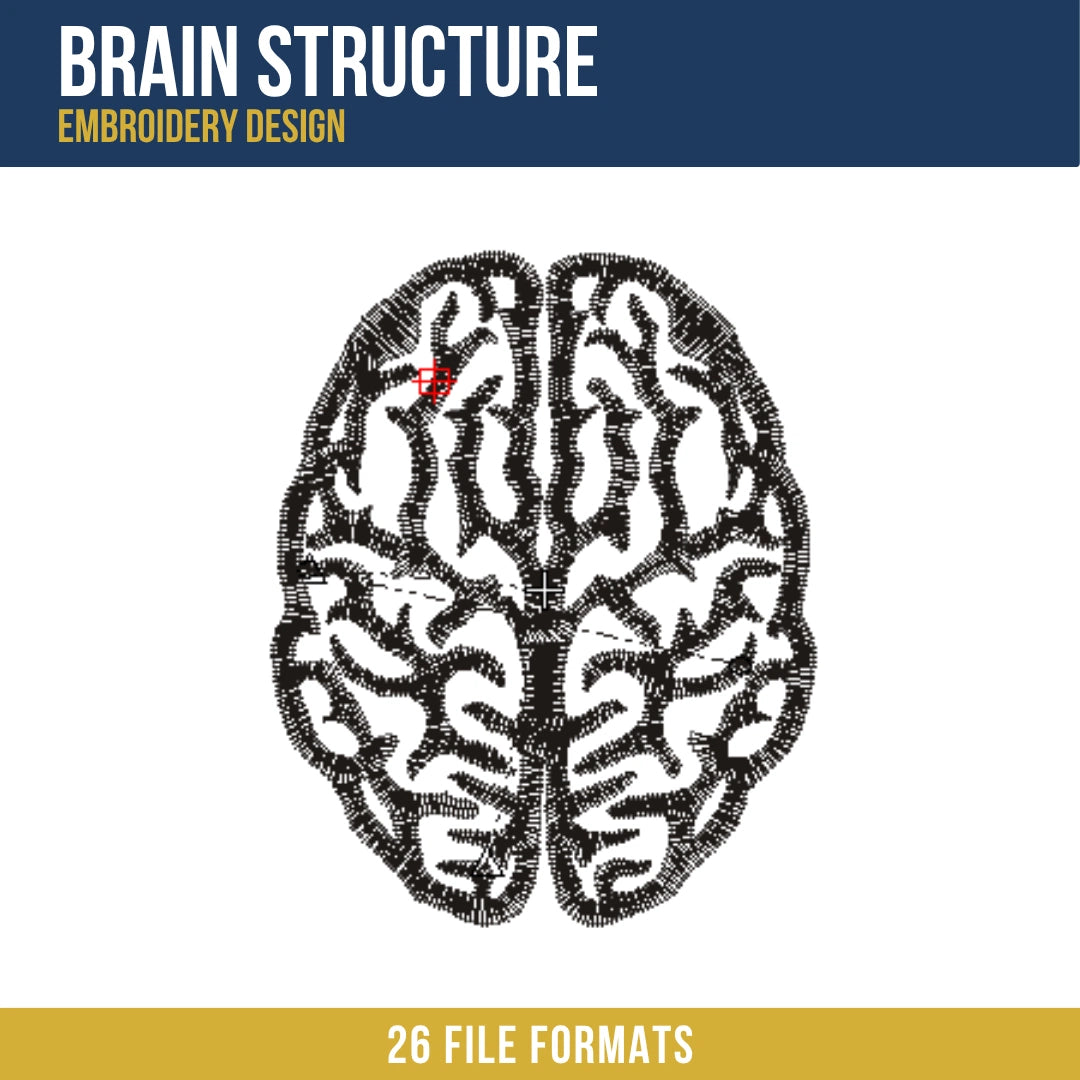

The primary technical challenge in this design is routing the stitch path through the full network of branching sulcal channels with the minimum number of jump threads. Each branch split requires the digitizing path to either continue down one fork and jump back to complete the other, or to be routed as a continuous back-and-forth pass that covers both forks in sequence. At 2.00 inches wide, visible jump thread tails between interior channels would read clearly on the finished stitch-out. The path routing was planned to complete as many adjacent branches as possible in continuous passes before committing to a jump, keeping the underside clean and the top surface free of travel thread shadows.

The second challenge was width consistency along channels that curve and taper simultaneously. A satin column that both narrows and bends must have its stitch angle adjusted continuously to prevent the inner edge from bunching while the outer edge gaps. Each branching channel was mapped with per-segment angle adjustments through every curve so the column face remains flat and even regardless of the direction changes along its path.

The third challenge was preserving the legibility of the interhemispheric fissure as a distinct vertical axis at the compact 2.00-inch width. With dense branching channels pressing in from both sides, the central dividing channel risked being visually absorbed into the surrounding network. The fissure was given a slightly wider satin column than the secondary branches and was sequenced to stitch last over the adjacent channel edges, ensuring it reads as the primary structural axis of the composition at any viewing distance.

License

This file is licensed for use on finished physical goods only. You may stitch and sell embroidered items made from this design. The digital files themselves may not be resold, redistributed, shared, or included in any digital product bundle.

Instant Download

Your files are available immediately after purchase. This listing includes 1 size in all 26 embroidery formats, zipped and ready to transfer directly to your machine or software. No waiting, no requests needed. Add to cart, download, and stitch.
