British Flag Embroidery Design: Union Jack Machine Embroidery File

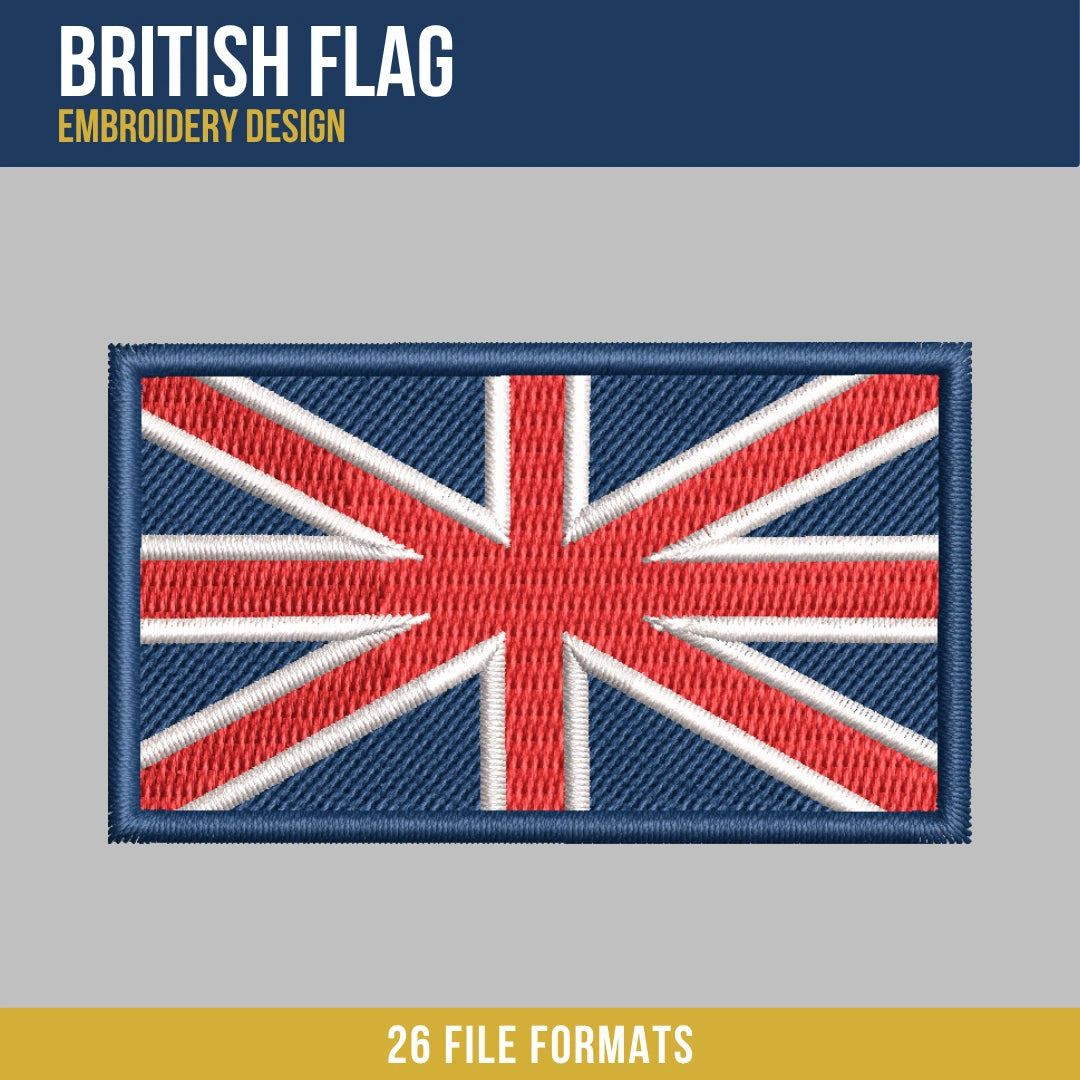

The British Flag embroidery design is a full-color Union Jack rendered in a four-color construction: navy blue field, red cross and diagonal stripes, white fimbriation borders, and a matching navy satin outer frame border. The design accurately reproduces the flag's three-cross composition, combining the horizontal and vertical red Cross of St George, the white-bordered diagonal red Cross of St Patrick, and the white diagonal Cross of St Andrew, all layered and counter-changed within the rectangular flag field. Total stitch count is 8,643 stitches at 2.57 x 1.48 inches.

What makes this design technically distinct from other multi-color embroideries in the same collection is the counter-change geometry of the diagonal elements. The Union Jack is not a simple symmetric design: the diagonal red stripes are deliberately offset to one side of the white diagonals in each quadrant, and this offset reverses from quadrant to quadrant. Reproducing this asymmetric counter-change accurately in embroidery at a compact 2.57-inch width required each of the eight diagonal stripe segments to be individually mapped and sequenced, rather than treating the diagonals as two simple crossed bands.

Design Details

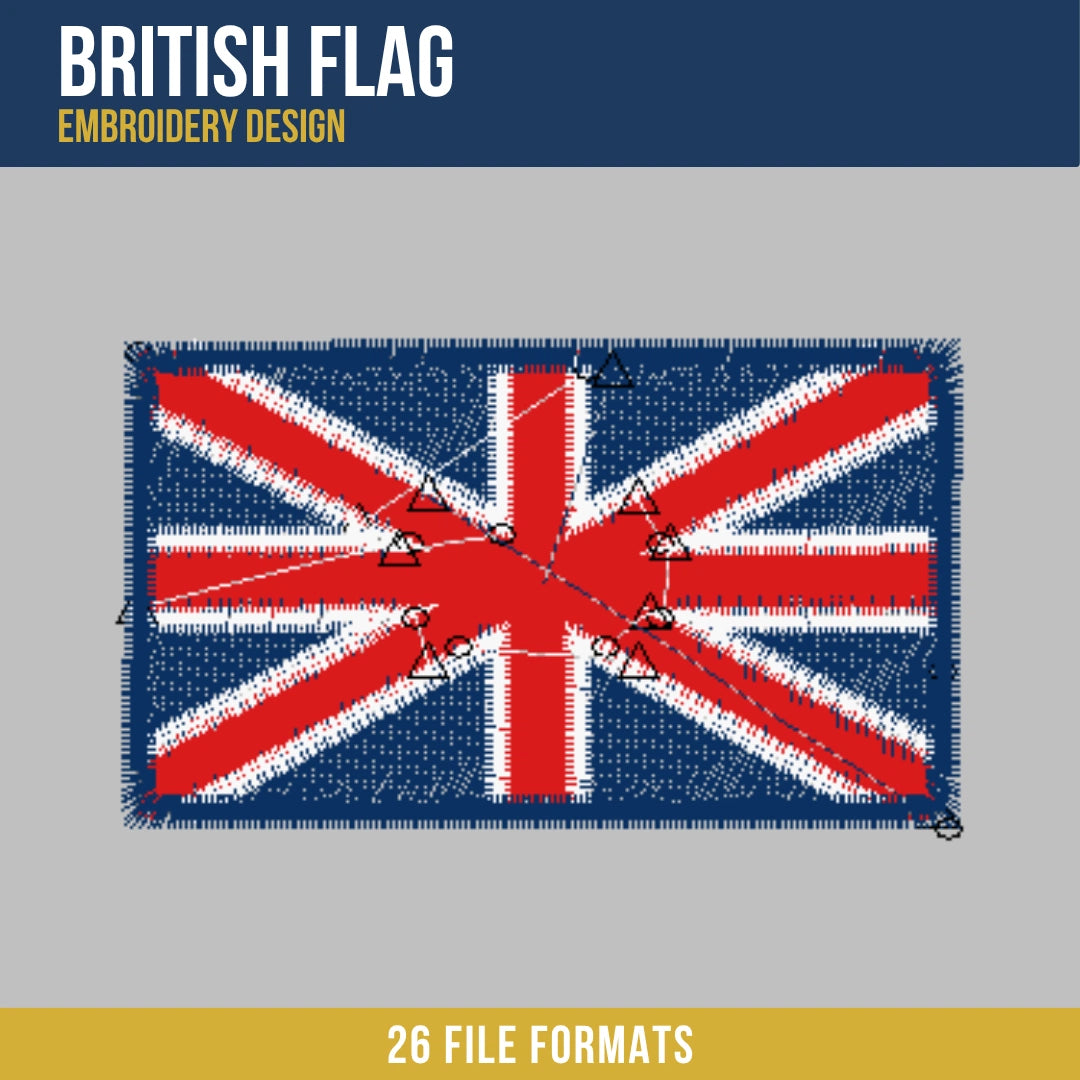

The dominant element is the navy blue background field, filled with dense horizontal satin stitching that covers the full rectangular area of the flag. Over this field, the white diagonal cross of St Andrew is stitched as two broad diagonal bands running corner to corner, each band filled with white satin at the appropriate diagonal angle. The red diagonal counter-changed stripes of St Patrick are layered over the white diagonals, offset to the upper-left side in two quadrants and to the lower-right side in the other two, accurately reproducing the heraldic counter-change. The horizontal and vertical arms of the red Cross of St George are stitched as wide satin bands crossing the full width and height of the flag, centered on both axes. White fimbriation borders run along both edges of each red cross arm, separating the red from the navy field with a narrow white satin line that matches the flag's official proportions as closely as the stitch scale allows. The entire flag is enclosed by a wide navy satin border that frames the rectangular composition and gives the finished piece the appearance of a woven patch. Color sequence runs from background outward: navy field first, then white diagonals, then red diagonals, then red cross arms, then white fimbriation, then outer border.

Size Guide

Formats Included

This design includes 26 machine embroidery formats compatible with all major brands and software: PES, PEC (Brother, Baby Lock, Bernina) | DST, DSB (Tajima) | JEF, SEW (Janome, Elna) | VP3, VIP, SHV, HUS (Husqvarna Viking) | PCS, PCQ, PCD (Pfaff) | XXX (Singer) | ART (Bernina software) | 000 (Singer/generic) | 100 (Toyota) | CND (Melco/Conde) | CSD (Singer/POEM) | DGT (Barudan) | DSZ (Tajima older) | EMD (Elna) | EXP (Melco/Bernina) | INF (design info).

Digitizing Quality

The primary technical challenge in this design is accurately reproducing the asymmetric counter-change of the diagonal St Patrick stripes at a 2.57-inch width. Each of the four flag quadrants contains a red diagonal stripe offset to a different side of the white diagonal, and the offset direction reverses at the vertical and horizontal center axes. At this scale, even a one-millimeter error in offset placement reads as a visually incorrect flag to anyone familiar with the Union Jack. Each diagonal segment was mapped independently with its offset measured relative to the center intersection rather than estimated from the overall stripe width.

The second challenge was managing the five-layer stitch buildup at the center of the flag where all cross arms and diagonal bands converge. Navy field, white diagonals, red diagonals, red cross arms, and white fimbriation all overlap at the central intersection, creating a potential for significant thread bulk and needle penetration resistance. The layer sequence was ordered to distribute density across the build-up zone, with each successive layer using a reduced underlay relative to what would normally be applied to a standalone element of that size.

The third challenge was keeping the white fimbriation lines legible at this compact size. The narrow white borders flanking the red cross arms are among the finest detail elements in the design, and at 2.57 inches wide they fall near the minimum practical width for a readable satin column. The fimbriation was stitched as the final color layer over the completed red cross arms, with column width calibrated to the minimum that produces a clean, unbroken line without the thread splitting or the column collapsing into the underlying red fill.

License

This file is licensed for use on finished physical goods only. You may stitch and sell embroidered items made from this design. The digital files themselves may not be resold, redistributed, shared, or included in any digital product bundle.

Instant Download

Your files are available immediately after purchase. This listing includes 1 size in all 26 embroidery formats, zipped and ready to transfer directly to your machine or software. No waiting, no requests needed. Add to cart, download, and stitch.
