Football Patch Embroidery Design: Soccer Ball Badge Machine Embroidery File

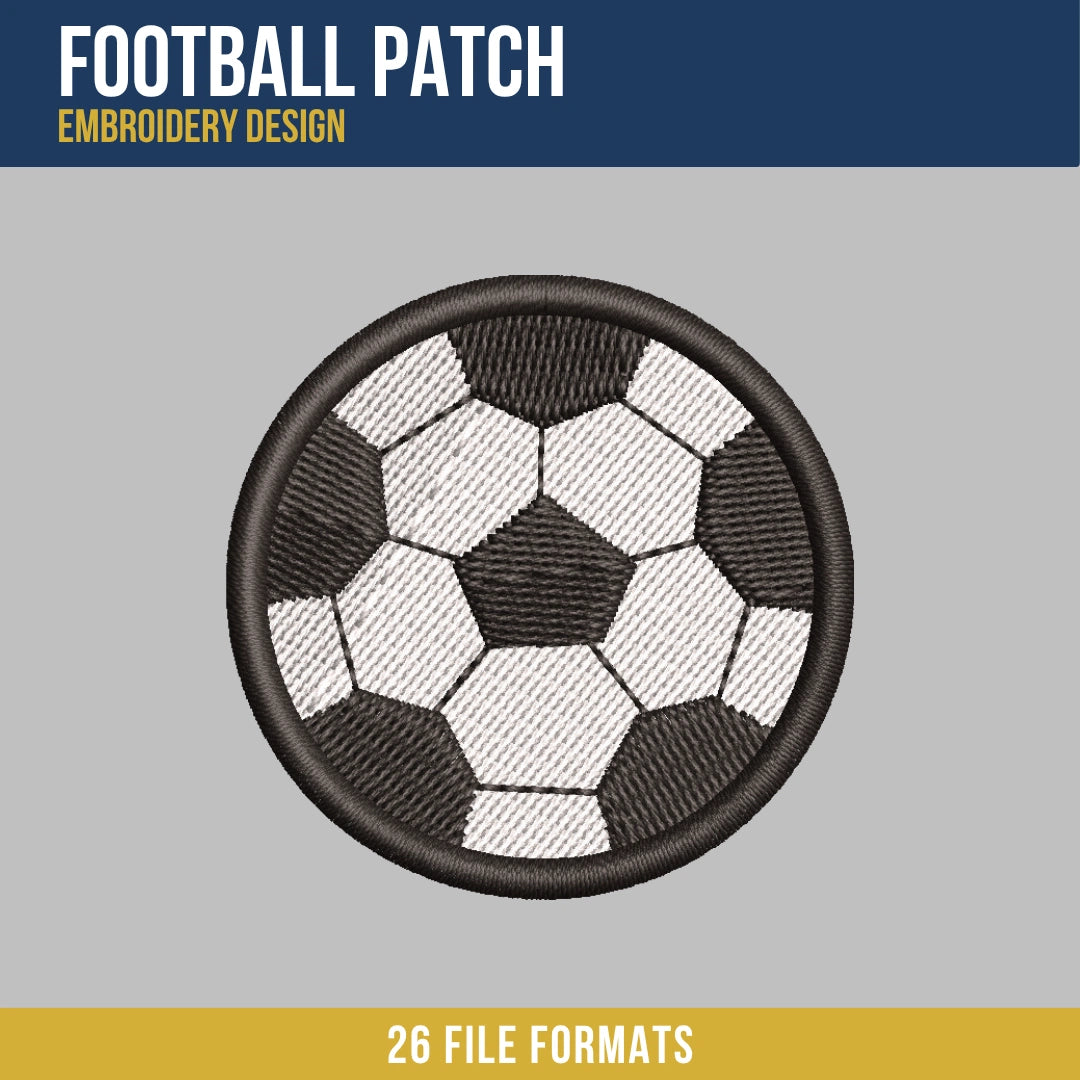

The Football Patch embroidery design is a compact circular badge composition featuring a classic soccer ball rendered in black and white fill stitching within a thick dark circular border frame, built from the traditional truncated icosahedron panel pattern of one central black pentagon surrounded by alternating white hexagon and black pentagon panels radiating outward to the circular edge. The design functions as a self-contained patch-ready emblem with the bold circular border providing a clean finished edge suitable for direct application to garments, bags, and sports accessories. Total stitch count is 5,478 stitches.

What distinguishes this design from other sports or ball embroidery files in an athletic collection is the geometric precision required to reproduce the soccer ball panel pattern correctly within a circular boundary at a 2-inch scale. The truncated icosahedron panel layout of a classic football is a mathematically specific arrangement where each black pentagon must be surrounded by exactly five white hexagons, and the curvature of the ball surface means the panels at the outer edge of the circular composition are partially cropped by the border ring. Digitizing this panel geometry accurately at small scale, with clean fill boundaries between every adjacent black and white panel, is the specific technical requirement that defines this file.

Design Details

The outermost element is a thick circular border band in dark charcoal-black satin fill, stitched with a curved fill direction that follows the ring circumference and gives the border a rounded, dimensional edge quality. The border functions as both the patch boundary and the visual frame that separates the ball surface from the background fabric.

Inside the border, the soccer ball surface is constructed from individual panel fills in two colors. The central panel is a black pentagon fill at the exact center of the composition. Five white hexagonal panels radiate outward from the central pentagon, each filled with a directional satin stitch at an angle that follows the panel's dominant axis. Between and around the white hexagons, additional black pentagon and partial pentagon panels fill the remaining surface, with the outermost panels partially cropped by the circular border ring at the ball's perimeter. The seam lines between adjacent panels are formed by the fill boundaries themselves rather than applied outline stitches, so the panel division reads as clean geometric joins without additional line weight. The white panel fills use a slightly diagonal satin stitch direction that suggests the curved surface texture of a real football.

Size Guide

Formats Included

• PES, PEC — Brother, Baby Lock, Bernina
• DST, DSB — Tajima
• JEF, SEW — Janome, Elna
• VP3, VIP, SHV, HUS — Husqvarna Viking
• PCS, PCQ, PCD — Pfaff
• XXX — Singer
• ART — Bernina software
• 000 — Singer/generic
• 100 — Toyota
• CND — Melco/Conde
• CSD — Singer/POEM
• DGT — Barudan
• DSZ — Tajima older
• EMD — Elna
• EXP — Melco/Bernina
• INF — design info

Digitizing Quality

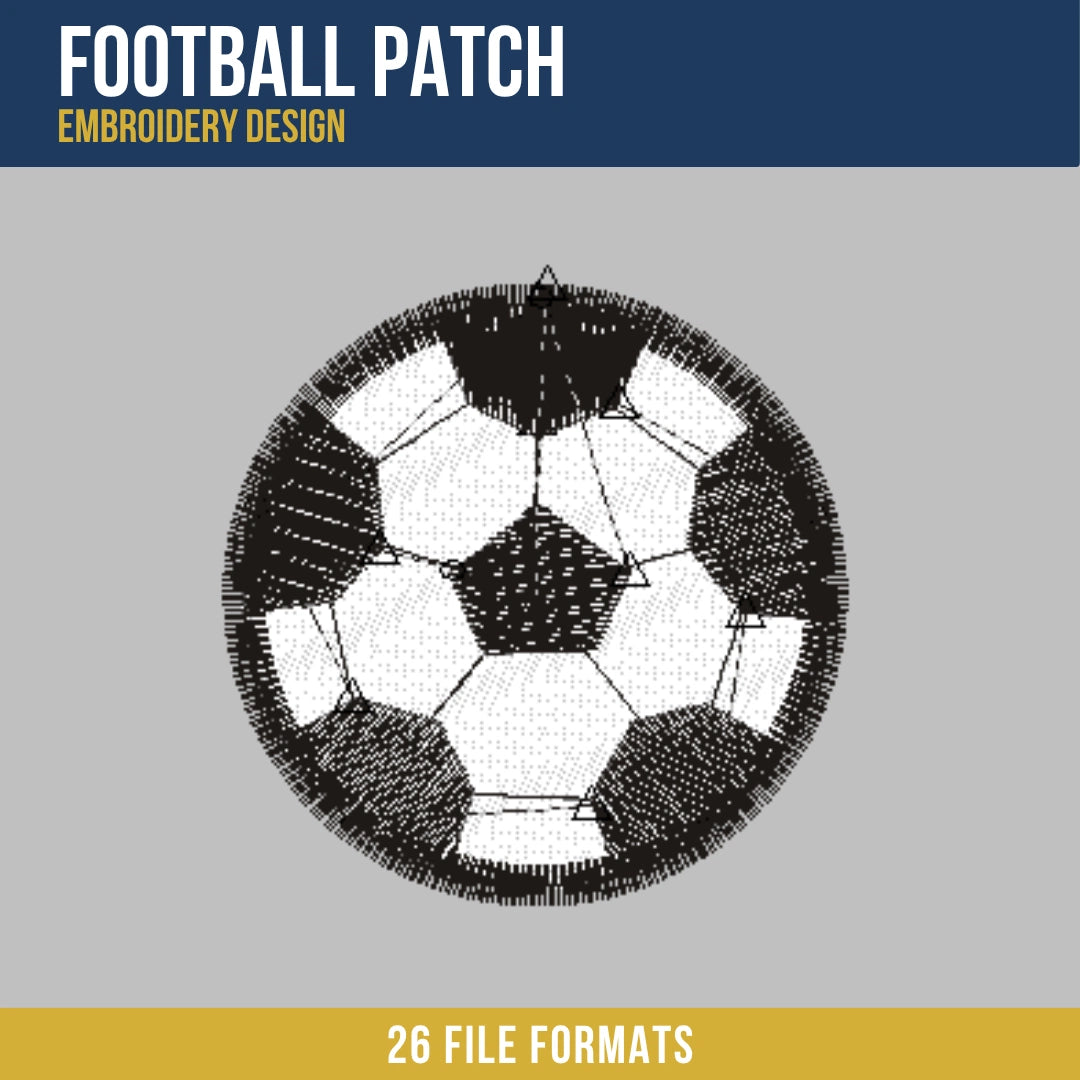

The primary technical challenge in this design is achieving clean, accurate boundaries between every adjacent black and white panel fill at a 2-inch overall size. The contrast between the black pentagon fills and the white hexagon fills means that any boundary drift or pull in either direction is immediately visible as a color bleed or an unintended gap at the panel seam lines. Pull compensation for the black fills and the white fills must be independently calibrated so that both color zones pull inward by matching amounts, keeping the seam lines between panels consistent in width across the full ball surface.

The partial panel fills at the outer edge of the ball, where the circular border crops the outermost pentagon and hexagon shapes, required individual path shaping for each cropped panel. A full panel shape cannot be used at the perimeter because the circular border boundary intersects the panel geometry at a different point for each outer panel. Each cropped panel is digitized as a unique shaped fill that terminates exactly at the inner edge of the circular border, ensuring no gap and no overlap between the ball surface fills and the border band above them.

At 2 inches, the individual panel fills are small enough that stitch density must be carefully controlled to avoid fabric distortion from over-stitching in the black pentagon areas, which cover proportionally more of the total composition area than the white hexagons. The black fills use a density setting that produces full coverage without compressing the fabric, while the white fills are set slightly lighter to preserve their bright white appearance against the adjacent dark panels.

License

This design is licensed for personal use and small commercial production of finished physical goods. You may sell embroidered items created with this file. The digital files themselves may not be resold, redistributed, shared, or included in any digital product collection.

Instant Download

Files are available immediately after purchase with no waiting and no shipping. This listing includes 1 size in 26 embroidery formats. Complete your purchase and download your full file package directly from your order confirmation.
