Gothic Bat Crest Embroidery Design: Halloween Bat Badge Machine Embroidery File

The Gothic Bat Crest embroidery design is a single-color gothic emblem composition featuring a stylized bat with fully spread wings centered within a geometric shield crest outline, rendered entirely in dark charcoal-brown fill and outline stitching with no secondary colors. The bat body is a compact filled form with a small pointed head, while the wings extend outward as broad flat filled triangular shapes with internal negative space cutout details that suggest wing membrane structure. The shield crest frame is constructed from a hexagonal outline ring that partially overlaps the bat composition, creating an integrated badge-ready emblem. Total stitch count is 3,085 stitches.

What distinguishes this design from other bat or gothic emblem embroidery files in a Halloween or dark theme collection is the structural relationship between the bat subject and the shield frame. Rather than placing the bat inside a closed frame as a contained element, this composition overlaps the bat wings with the shield outline so that the wings extend beyond and through the frame boundary on both sides. Digitizing a subject that simultaneously sits inside and breaks through its containing frame requires the frame outline and the bat fills to be sequenced so the overlap reads correctly in three-dimensional terms on fabric.

Design Details

The shield crest frame is a geometric hexagonal outline in dark charcoal satin stitch, with a flat top edge, angled upper side edges, straight lower side edges, and a pointed bottom tip that curves into two upswept horn-like ends. The frame outline is an open ring rather than a filled shape, with the bat composition occupying the interior space and the wing tips extending beyond the frame sides. The upper portion of the frame appears behind the bat, while the lower pointed section appears in front of the bat body at the bottom of the composition.

The bat body at the center of the composition is a compact dense fill in dark charcoal, with a small pointed head featuring two narrow ear shapes at the crown and forward-facing angular eye details. The wings extend horizontally from the body as broad triangular fill zones, each wing tapering to a sharp outer tip well beyond the shield frame boundary. Within each wing fill, several parallel vertical or angled cutout slits are left unstitched to suggest the finger bones or membrane divisions of a bat wing, creating internal negative space detail within the otherwise solid wing fills. The lower edge of the bat body forms a curved scalloped shape suggesting the wing membrane connection between the body and legs.

Size Guide

Formats Included

• PES, PEC — Brother, Baby Lock, Bernina
• DST, DSB — Tajima
• JEF, SEW — Janome, Elna
• VP3, VIP, SHV, HUS — Husqvarna Viking
• PCS, PCQ, PCD — Pfaff
• XXX — Singer
• ART — Bernina software
• 000 — Singer/generic
• 100 — Toyota
• CND — Melco/Conde
• CSD — Singer/POEM
• DGT — Barudan
• DSZ — Tajima older
• EMD — Elna
• EXP — Melco/Bernina
• INF — design info

Digitizing Quality

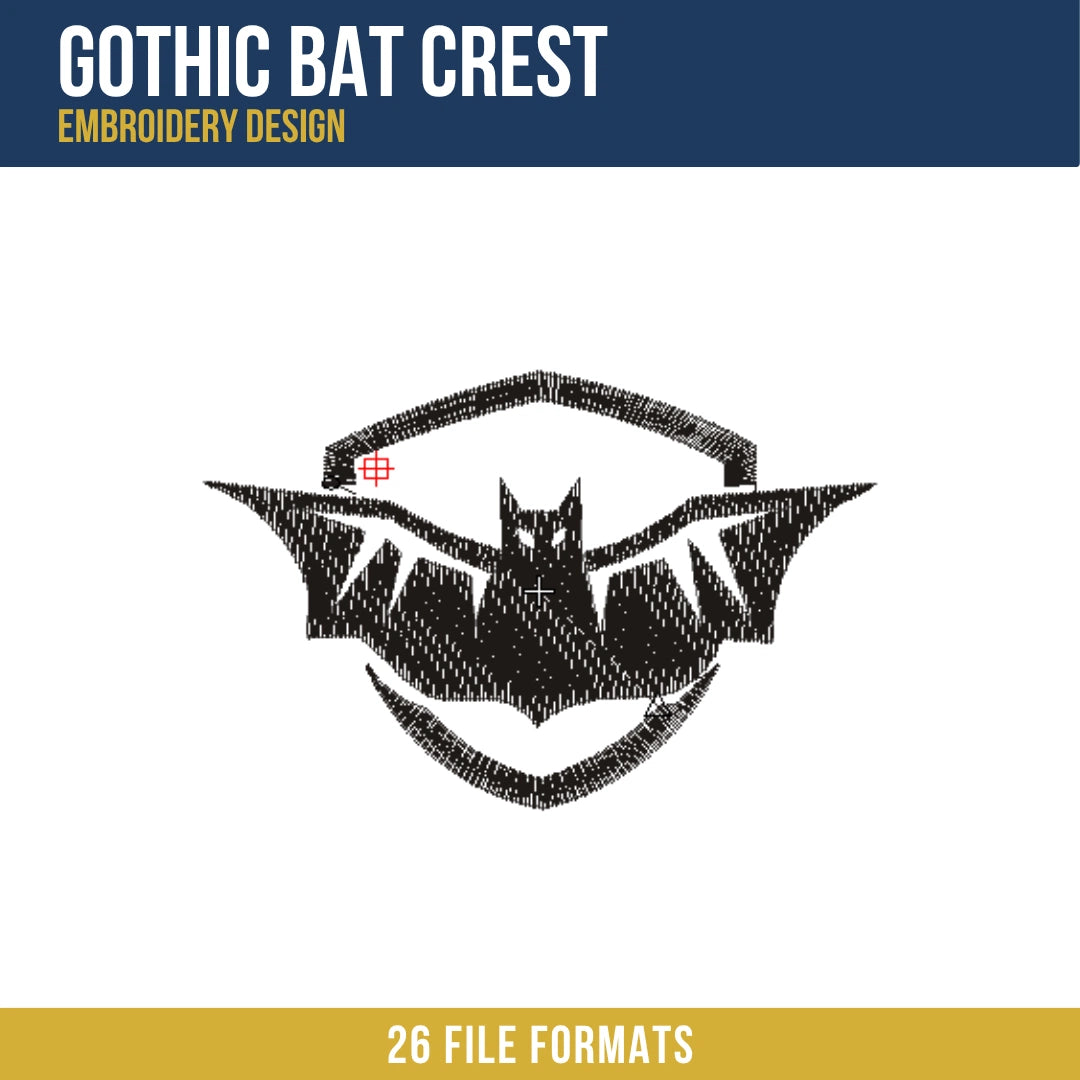

The primary technical challenge in this design is establishing the correct depth sequencing between the shield frame outline and the bat wing fills where the wings overlap and extend through the frame boundary. The shield frame must appear to sit behind the bat wings at the sides where the wings cross the frame, but in front of the bat body at the lower section where the frame point overlaps the body base. This requires the frame outline to be split into segments that are stitched at different points in the sequence, with the upper frame sections stitching before the bat fills and the lower frame section stitching after, so the correct layering reads naturally on fabric.

The wing membrane cutout slits within each wing fill present the same negative space preservation challenge found in other cutout-based designs, but at a more demanding scale. At 3.12 inches total width, the individual wing slit cutouts are very narrow unstitched channels within an already compact wing fill zone. Pull from the surrounding fill on both sides of each slit can close the channel entirely if compensation is not set to draw the fill edges away from the slit boundaries. Each slit is individually shaped with inward pull compensation on both adjacent fill edges to keep the channels open and legible on fabric.

The sharp outer wing tips at the far left and right of the composition are the most spatially extended elements in the design, and at this overall size they taper to very fine points at a considerable distance from the main body mass. Narrow satin fills that taper at their tips and extend across a wide span are subject to drift along their length if the fill path direction is not aligned precisely with the taper axis. Each wing tip fill is digitized with its path direction aligned to the dominant taper angle to minimize lateral drift and maintain a clean sharp point at the outermost wing tip on both sides.

License

This design is licensed for personal use and small commercial production of finished physical goods. You may sell embroidered items created with this file. The digital files themselves may not be resold, redistributed, shared, or included in any digital product collection.

Instant Download

Files are available immediately after purchase with no waiting and no shipping. This listing includes 1 size in 26 embroidery formats. Complete your purchase and download your full file package directly from your order confirmation.
