Purple Grape Stitch Embroidery Design: Fruit Cluster Machine Embroidery File

This Purple Grape Stitch embroidery design renders a charming three-berry grape cluster with paired green leaves as a compact, fully filled machine embroidery file in three colors. The design features three large circular grape berries arranged in a triangular cluster, each filled with dense purple thread and accented with a small crescent white highlight detail, topped by two pointed green leaves fanning outward from a shared stem base. At 1.32 x 1.76 inches and 1,958 stitches, this miniature design is engineered for clean, dense coverage at a very small finished size, making it ideal for children's apparel, tote bags, kitchen linens, and small accessory embroidery.

What makes this design technically distinct from other filled fruit and food motifs in the collection is the challenge of achieving complete, smooth fill coverage across three large circular berry forms at an extremely compact scale. At just over one inch wide, each berry circle must be filled densely enough to read as a solid, weighty form without pushing stitch counts high enough to cause fabric distortion or stiffness, requiring precisely balanced fill density that sits at the edge of what is achievable cleanly at this finished size.

Design Details

The three grape berries form the dominant element of the composition, arranged with two berries side by side across the upper portion and one larger berry centered below, creating a stable triangular cluster. Each berry is filled with dense purple thread using a consistent diagonal fill angle that gives the rounded surfaces a uniform, slightly directional texture. Positioned on the upper-left interior of each berry is a small curved crescent highlight rendered in white thread, stitched as a narrow curved satin shape that reads as a light reflection and gives each berry a sense of roundness and dimension. The berries overlap slightly at their edges, with the stitch sequence structured so adjacent berries are clearly separated by outline definition rather than blending into one another. Above the cluster, two leaf forms fan outward from a central meeting point. Each leaf is filled with a vivid green thread using a center-vein fill angle that follows the natural midrib of the leaf shape, giving each leaf a clean, organic directional surface. The leaf tips taper to fine points, and the bases curve inward toward the shared stem junction. The three-color palette of deep purple, white, and bright green is sequenced with two color stops: green for both leaves and white highlights within the same thread change sequence, keeping machine stops to a minimum.

Size Guide

Formats Included

• PES, PEC - Brother, Baby Lock, Bernina
• DST, DSB - Tajima
• JEF, SEW - Janome, Elna
• VP3, VIP, SHV, HUS - Husqvarna Viking
• PCS, PCQ, PCD - Pfaff
• XXX, 000, CSD - Singer
• ART - Bernina software
• 100 - Toyota
• CND - Melco/Conde
• DGT - Barudan
• DSZ - Tajima older
• EMD - Elna
• EXP - Melco/Bernina
• INF - Design info file

Digitizing Quality

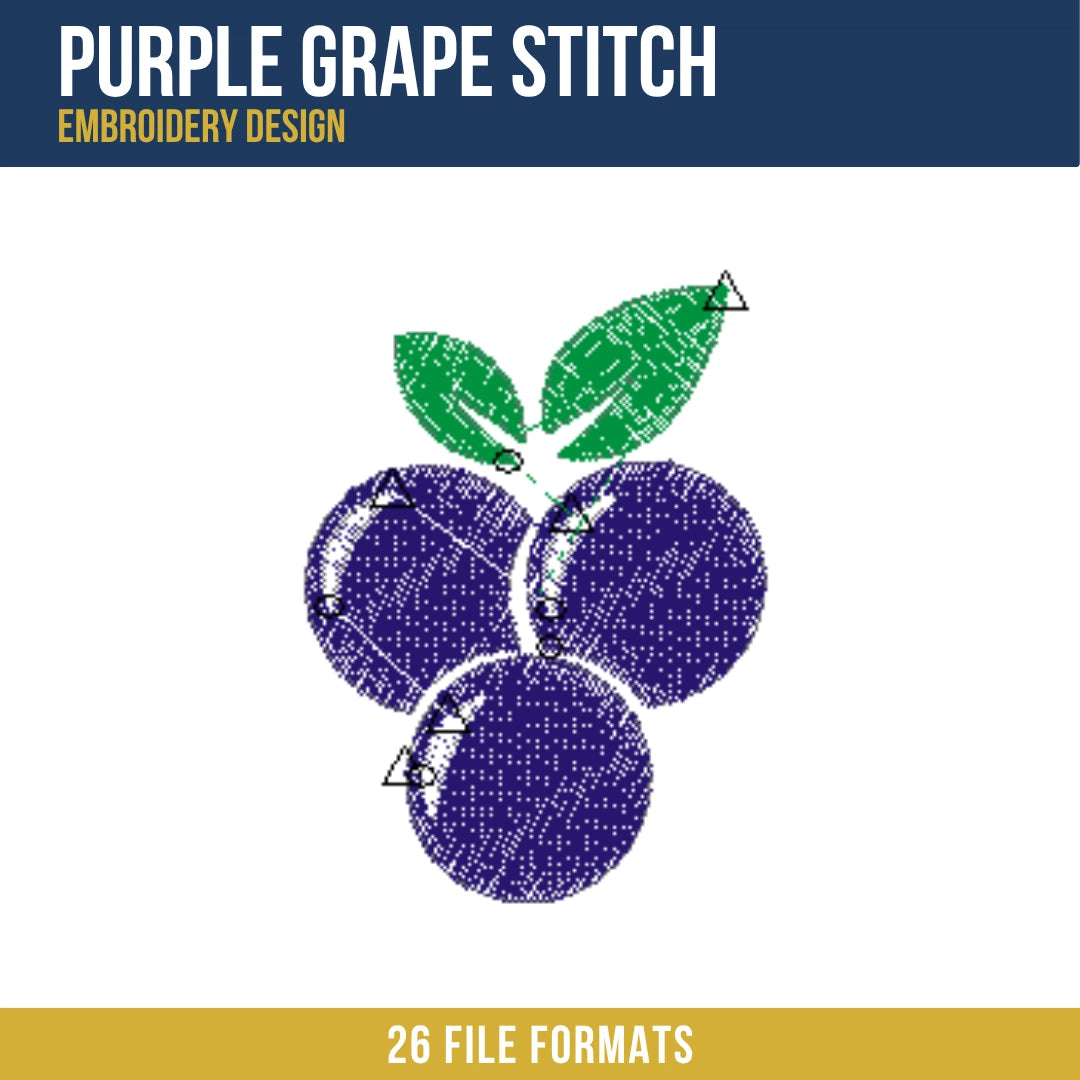

The central digitizing challenge in this design was achieving full, even fill coverage across three circular berry forms at a finished width of just 1.32 inches. At this scale, circular fills are prone to visible stitch gaps along the curved edges where column lengths shorten rapidly. Fill angle and stitch length were carefully tuned to maintain consistent density from the center of each berry to its outermost edge, preventing the thin, sparse coverage that commonly appears at the perimeter of small circular fills.

The white crescent highlight shapes on each berry required precise placement and sizing to read clearly at miniature scale without consuming enough stitch area to disrupt the surrounding purple fill. Each highlight was digitized as a standalone satin element with its own underlay, positioned and scaled so it reads as a distinct reflective accent rather than blending into or competing with the berry fill beneath it.

The leaf tip terminations presented an additional fine-detail challenge. As each leaf narrows toward its pointed tip, the fill columns reduce to just a few stitches wide, requiring careful minimum-stitch management to close each tip cleanly without thread nesting or a blunt, flat termination that would break the organic character of the leaf form at this compact size.

License

This design is licensed for personal use and the production of finished physical goods for sale. You may stitch this file and sell the finished embroidered items commercially. The digital design files themselves may not be resold, redistributed, shared, or included in any digital product, bundle, or download offering in any format.

Instant Download

Your files are available immediately after purchase with no waiting and no shipping. This listing includes 1 size in all 26 embroidery formats, ready to load directly into your embroidery machine or software. Add to cart and start stitching today.
