Medical Caduceus Embroidery Design: Medical Symbol Machine Embroidery File

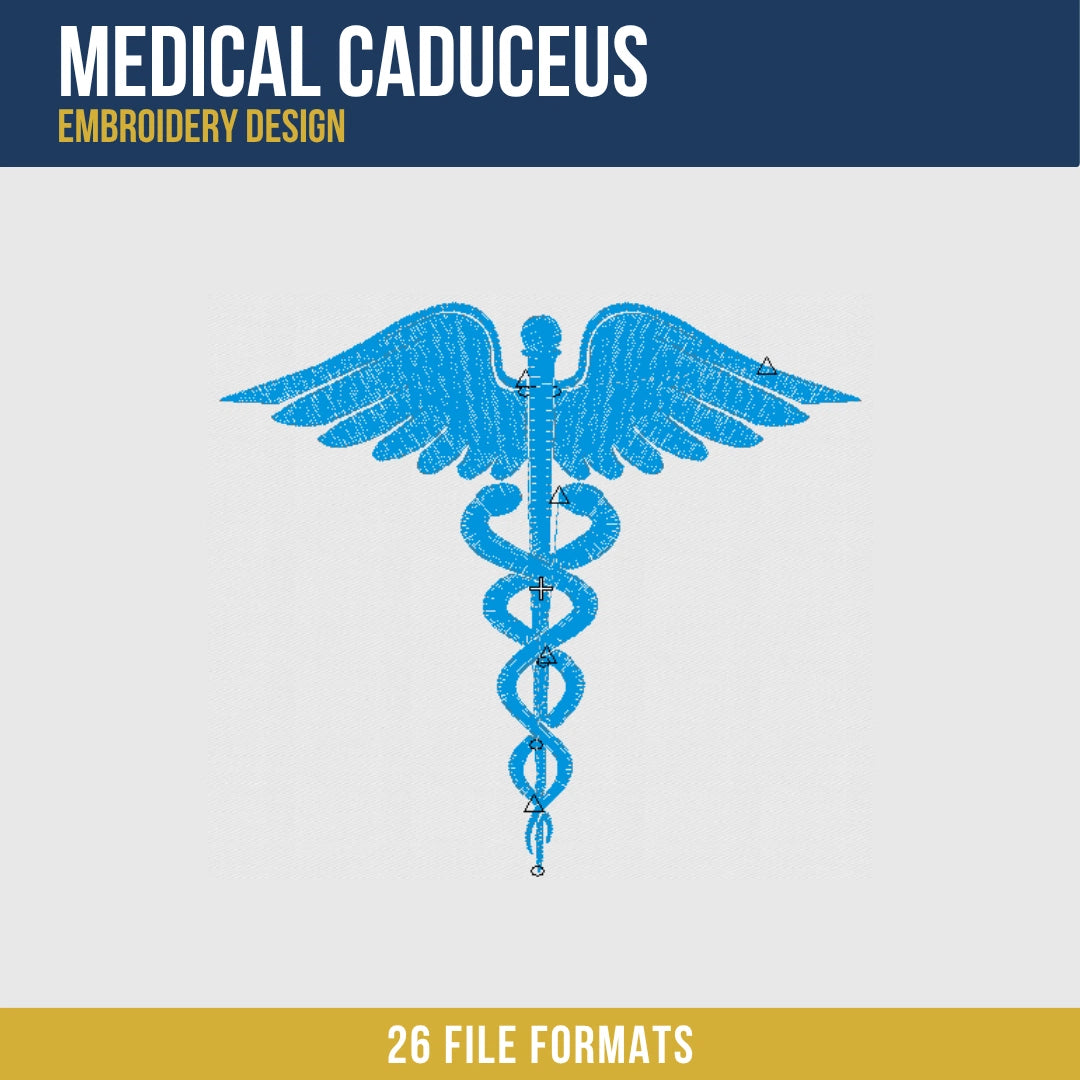

This Medical Caduceus embroidery design is a clean, single-color machine embroidery file featuring the classic caduceus symbol with two winged serpents coiled around a central staff, rendered entirely in bright cerulean blue thread. The design is built from smooth satin column fills that follow the continuous curves of each snake body as they spiral around the staff, with the wings above constructed from individual feather plume fills radiating outward from the wing root. The composition is symmetrical on both axes and reads with equal clarity at distance or close range. Total stitch count is 7,859 stitches.

What distinguishes this design from the Baroque Floral Frame and other single-color continuous-curve designs in this collection is the structural requirement that two independently coiling snake bodies must each read as separate three-dimensional forms while sharing a single thread color and crossing each other multiple times along the staff. The crossing points where one snake body passes in front of the other must be conveyed through sequencing and stitch layering alone, without any color change to distinguish foreground from background.

Design Details

The wings are the widest elements, extending symmetrically from the top of the staff on each side. Each wing is composed of individual feather plume fills arranged in two rows: a lower row of longer primary feathers tapering to fine pointed tips, and an upper row of shorter secondary feathers filling the wing body near the root. The plumes are separated by fine satin divider lines running along each feather boundary. The wing roots curve inward to meet the top of the staff at a rounded finial ball rendered as a compact circular satin fill. The central staff runs vertically through the full height of the design as a straight satin column of consistent width. Two snake bodies coil around the staff in opposing spiral paths, each rendered as a continuous satin column that rotates around the staff axis, crosses behind or in front of the opposing snake body at each intersection point, and terminates at the base of the staff with a small curved snake head. The snake bodies are the most structurally complex elements, requiring the satin column to maintain consistent width and surface smoothness through every curve and crossing along its full spiral length. At each crossing point, one snake column is stitched first and the second is laid over the top of it, creating a visible layering that reads as one body passing in front of the other. The staff base terminates with a small tapered tip at the lower center of the composition.

Size Guide

Formats Included

• PES, PEC - Brother, Baby Lock, Bernina
• DST, DSB - Tajima
• JEF, SEW - Janome, Elna
• VP3, VIP, SHV, HUS - Husqvarna Viking
• PCS, PCQ, PCD - Pfaff
• XXX - Singer
• ART - Bernina software
• 000 - Singer/generic
• 100 - Toyota
• CND - Melco/Conde
• CSD - Singer/POEM
• DGT - Barudan
• DSZ - Tajima older
• EMD - Elna
• EXP - Melco/Bernina
• INF - design info

Digitizing Quality

The defining technical challenge in this design is conveying the crossing layering of the two snake bodies at each intersection point using only stitch sequencing within a single thread color. At every crossing, the snake that reads as the front body must be stitched after the one beneath it so its satin columns sit visibly on top of the underlying snake body stitching. The crossing sequence was mapped for every intersection along both spiral paths before digitizing began, ensuring each front-body pass is correctly ordered relative to the one beneath it throughout the full coil.

The continuously curving snake body columns present the same compound-curve satin challenge seen in the Baroque Floral Frame, but with an added complication: the snake body must also appear to twist as it spirals around the staff, which is suggested by gradually rotating the satin column fill angle along the path length. This angle rotation must be smooth and gradual rather than stepped, or the twist reads as a series of angular breaks rather than a continuous cylindrical form on the finished piece.

The individual wing feather plumes required consistent taper management across both wings to maintain symmetry. Because the left and right wings are mirror images, any inconsistency in how the feather tips are tapered on one side is immediately visible when compared to the opposite wing. Each plume was digitized with identical taper parameters, and the two wings were verified against each other before the file was finalized to confirm that tip sharpness and plume width are consistent from wing to wing across all primary and secondary feathers.

License

This design is licensed for commercial use on finished physical goods. You may sell embroidered items made with this file without per-item royalty. Digital files, including all included formats, may not be resold, redistributed, or shared in any form, whether modified or unmodified.

Instant Download

Files are available immediately after purchase. This listing includes 1 size in 26 file formats, covering every major home and commercial embroidery machine brand. Download, unzip, and load directly into your machine or embroidery software.
