Military Tank Embroidery Design: Army Tank Side Profile Machine Embroidery File

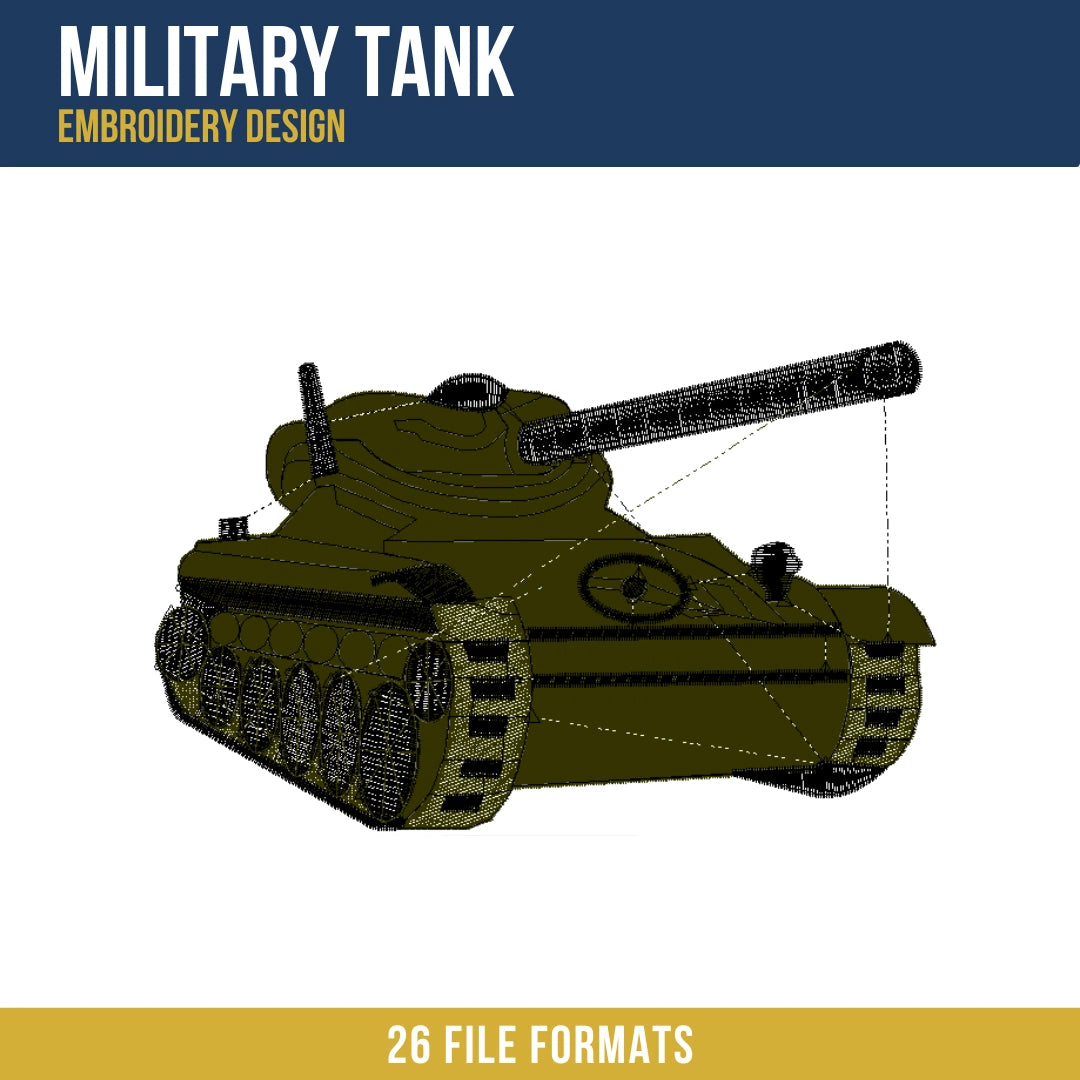

This Military Tank embroidery design is a detailed, side-profile machine embroidery file featuring a classic WWII-era battle tank rendered in a two-color palette of olive drab green and black. The tank body, turret, and hull are filled with dense horizontal and directional green fills, while all structural panel lines, track details, hatches, vision ports, and the long gun barrel are rendered in black satin and run-stitch lines placed over the green base. The composition is a wide horizontal profile with the barrel extending to the upper right and the full track assembly visible at the lower left. Total stitch count is 25,483 stitches.

What distinguishes this design from the Winged Piston and other mechanical embroidery files in this collection is the sheer scale of the green fill coverage relative to the black detail layer. The Winged Piston balances two independent element types; this tank design is essentially one large continuous green mass with an extensive black detail network applied on top of it. Managing the thread weight of the base fill across a 5.90 x 3.67 inch footprint while keeping the entire surface stable enough for the detail line pass is the central production challenge that no other mechanical design in the collection shares.

Design Details

The hull is the base element, a large trapezoidal green fill forming the main body of the tank from front slope to rear plate. The fill runs horizontally across the hull with consistent density. Over the hull fill, a horizontal black satin line divides the upper and lower hull panels, and three short vertical black satin bars on each side of the lower hull represent the mud guard mounting bolts. The front left track assembly is the most complex mechanical element, rendered as a large rounded rectangular form with a crosshatch directional fill suggesting the rubber track pad texture, outlined with a bold black satin border. Individual track links are represented by short black satin bars spaced along the track perimeter. The turret sits atop the hull as a rounded dome form in green fill with concentric black satin arc lines across its upper surface suggesting the cast armor construction. A small circular hatch ring sits at the turret top, rendered in black satin. The gun barrel extends from the turret front to the upper right as a long straight black satin column tapering slightly toward the muzzle, with a small muzzle brake block at the tip. A short radio antenna extends from the left rear turret edge as a narrow black satin line. On the hull side, a circular vision port cover and a small cylindrical side hatch are rendered in black satin outlines. The rear track assembly mirrors the front in form, with the same crosshatch fill and track link bar treatment. All major panel boundaries and the full outer hull silhouette are outlined with a bold black satin border throughout.

Size Guide

Formats Included

This design is delivered in 26 file formats compatible with all major machine brands: PES, PEC (Brother, Baby Lock, Bernina) | DST, DSB (Tajima) | JEF, SEW (Janome, Elna) | VP3, VIP, SHV, HUS (Husqvarna Viking) | PCS, PCQ, PCD (Pfaff) | XXX (Singer) | ART (Bernina software) | 000 (Singer/generic) | 100 (Toyota) | CND (Melco/Conde) | CSD (Singer/POEM) | DGT (Barudan) | DSZ (Tajima older) | EMD (Elna) | EXP (Melco/Bernina) | INF (design info)

Digitizing Quality

The primary challenge in this design is stabilizing the large green hull fill across a nearly six-inch wide footprint before the black detail line pass begins. A full-coverage grid underlay was applied beneath the entire hull fill to pre-tension the fabric evenly across the full area. Without this underlay, the cumulative pull of 25,000-plus stitches across the green fill layer would cause the hull edges to draw inward and the black panel lines placed over the fill to shift out of alignment relative to the silhouette.

The track assembly crosshatch fills are the densest elements in the design, running two overlapping fill passes across the track area at intersecting angles. The combined thread weight of the crosshatch at full density would produce a stiff, raised track section noticeably higher than the surrounding hull fill. Fill density on each crosshatch pass was reduced to maintain the visual texture of intersecting lines while keeping the track section at the same approximate height as the hull fill surface, ensuring the finished design sits flat across its full footprint.

The long gun barrel presents a specific alignment challenge at this design scale. A satin column running over five inches at a diagonal angle is susceptible to drift, where each successive column shifts slightly off the intended path due to fabric pull from the completed hull fill beneath it. The barrel was digitized with an edge-walk underlay running the full barrel length before the satin fill pass, establishing a fixed stitch wall along each barrel edge that the satin columns lock against, keeping the barrel straight and consistent in width from breech to muzzle tip.

License

This design is licensed for commercial use on finished physical goods. You may sell embroidered items made with this file without per-item royalty. Digital files, including all included formats, may not be resold, redistributed, or shared in any form, whether modified or unmodified.

Instant Download

Files are available immediately after purchase. This listing includes 1 size in 26 file formats, covering every major home and commercial embroidery machine brand. Download, unzip, and load directly into your machine or embroidery software.
