Nevada Western Embroidery Design: Western State Badge Machine Embroidery File

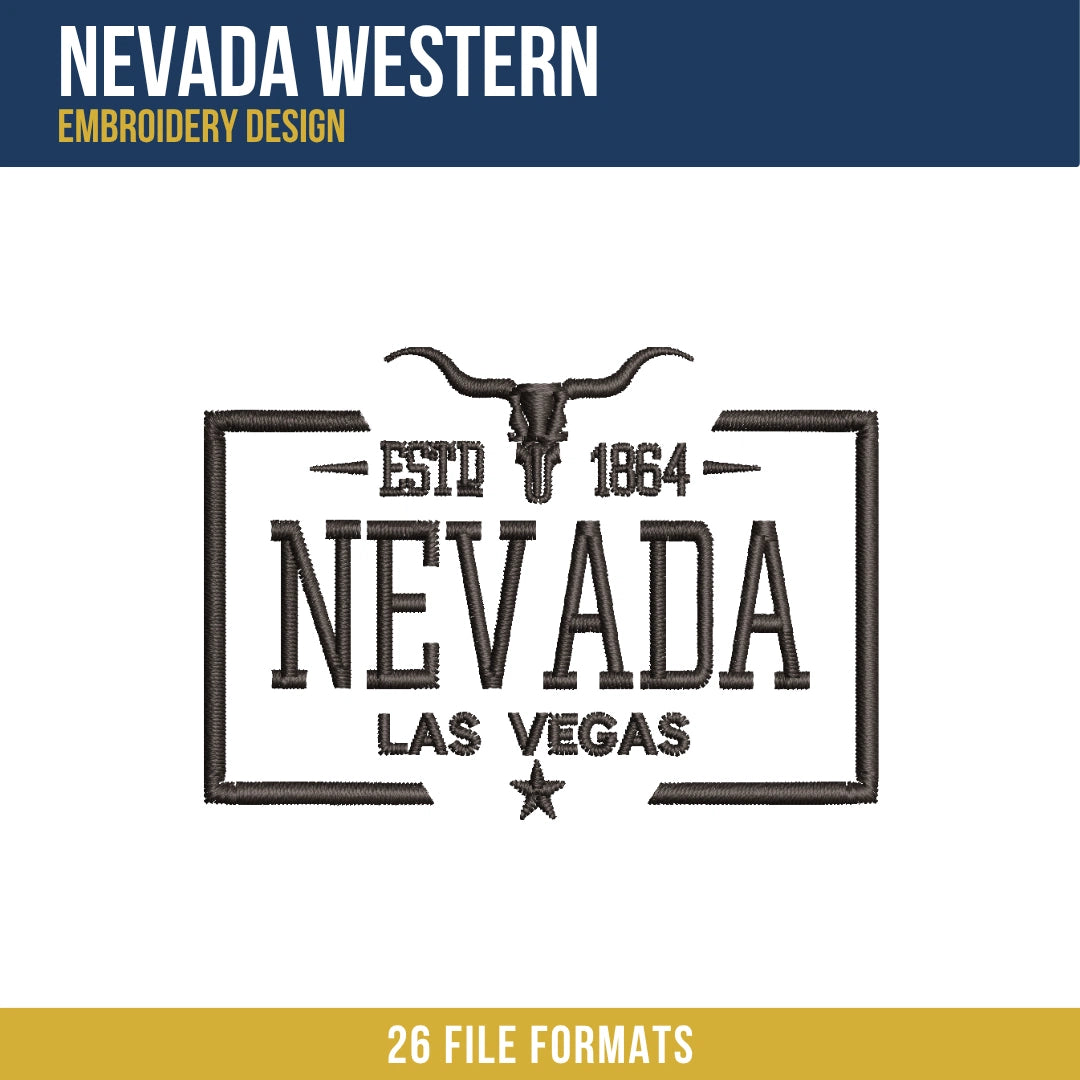

This Nevada Western embroidery design is a compact, vintage badge-style machine embroidery file featuring a rectangular frame enclosing the text "NEVADA" and "LAS VEGAS" with an "ESTD 1864" header line, a longhorn skull motif breaking through the top border, and a small five-pointed star at the base, all rendered in a single dark charcoal thread. The design combines satin text fills, a bold rectangular satin border frame, and a detailed skull silhouette into a unified western label composition. Total stitch count is 3,903 stitches.

What distinguishes this design from the Luxury Threaded Fifty-Two, 3D Block A, and other text-based designs in this collection is the integration of three completely different element types within a single small footprint: a geometric border frame, multi-line text at two different scales, and a figurative longhorn skull icon. No other design in the collection combines structural, typographic, and figurative elements in the same file, and sequencing all three element types to coexist cleanly at 2.76 x 1.95 inches is the defining production challenge.

Design Details

The rectangular border frame is the structural container of the design, rendered as a bold satin line forming four sides with notched corner accents at each corner junction. The top border is interrupted at center where the longhorn skull descends through it, breaking the frame line to allow the skull to read as sitting atop and partially overlapping the frame. The longhorn skull is the topmost figurative element, consisting of a compact frontal skull shape with two long curved horns sweeping outward to each side. The skull face is a small filled satin section and the horns are rendered as narrow tapered satin columns curving from the skull base to their tips. Below the skull, within the frame, a horizontal line reads "ESTD 1864" in small condensed satin text with two short horizontal rule accents flanking the text on each side. The main type block "NEVADA" fills the center of the frame in large bold slab-serif letters, each letterform built from dense satin fill columns with open counters on the letters A, D, and V clearly preserved. Below the main text, "LAS VEGAS" is set in a smaller condensed caps typeface in satin fill. A small five-pointed star sits centered at the base of the frame interior, rendered as a compact satin fill star. All elements stitch in dark charcoal throughout.

Size Guide

Formats Included

• PES, PEC - Brother, Baby Lock, Bernina
• DST, DSB - Tajima
• JEF, SEW - Janome, Elna
• VP3, VIP, SHV, HUS - Husqvarna Viking
• PCS, PCQ, PCD - Pfaff
• XXX - Singer
• ART - Bernina software
• 000 - Singer/generic
• 100 - Toyota
• CND - Melco/Conde
• CSD - Singer/POEM
• DGT - Barudan
• DSZ - Tajima older
• EMD - Elna
• EXP - Melco/Bernina
• INF - design info

Digitizing Quality

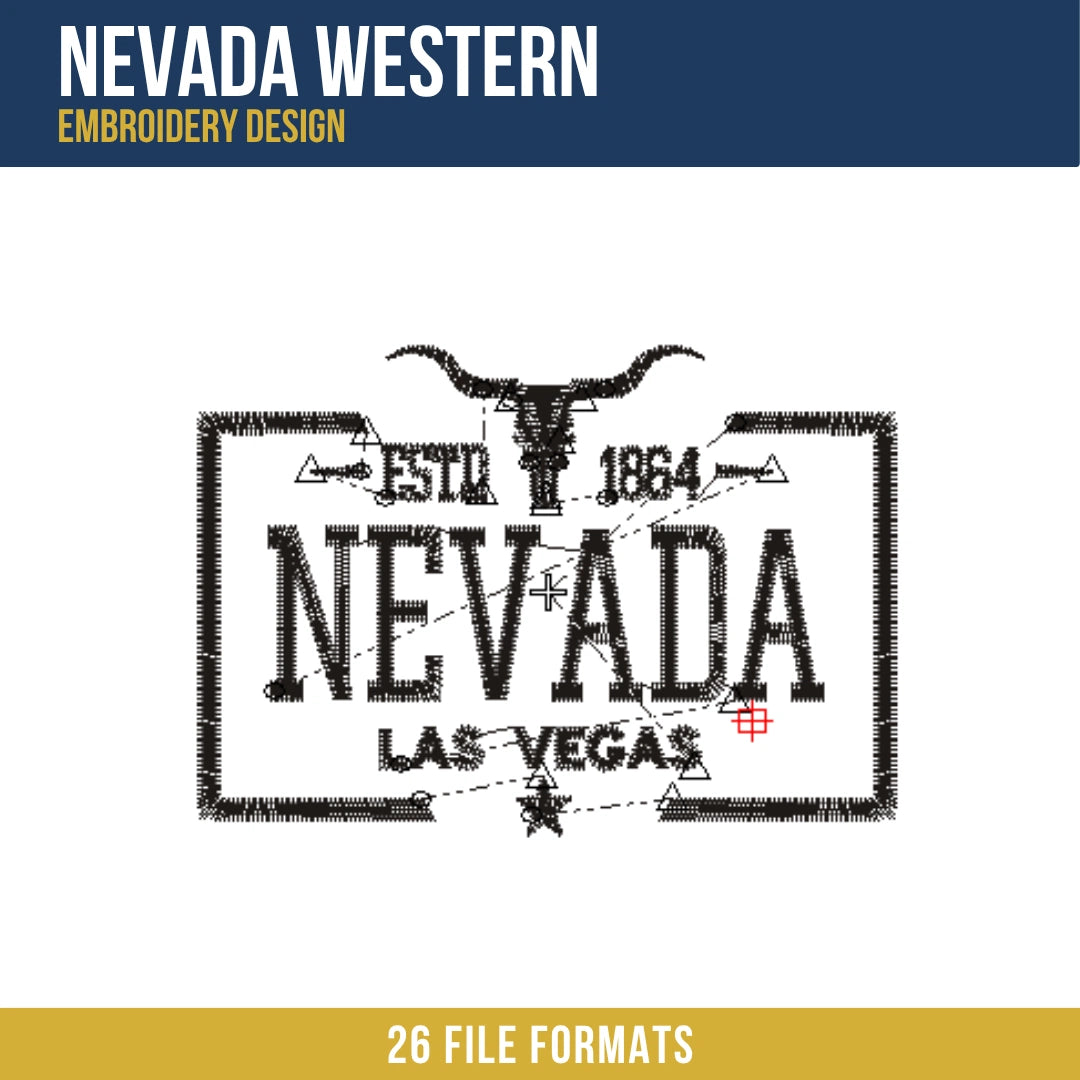

The most demanding element in this design is the open letter counters within the NEVADA text block at 2.76 inches total width. The letters A, D, and V each contain interior void spaces that must remain open against the pull of the surrounding satin fill. At this text size, counter openings are only a few millimeters across, and without edge-walk underlay along each counter boundary, the fill columns pull inward and partially close the counters on the finished piece. Each counter outline was stitched as a locking element before the letter fill was laid, building the fill outward from the counter edge to preserve the open interior.

The longhorn skull breaking through the top frame border required careful sequencing at the intersection point. The frame border satin must be interrupted cleanly at the skull position, and the skull elements must sit visibly in front of the frame at that junction. The sequence stitches the left and right frame segments as separate paths that terminate at the skull edges, then places the skull elements as the next layer so they sit on top of the frame termination points, creating a clean overlap that reads as the skull breaking through the border.

The "ESTD 1864" header line combines small text with flanking rule accents, and at the scale it occupies within the 2.76 inch frame, the letterforms are near the minimum size for readable satin text. The condensed character spacing of this line means adjacent letters share very little clearance between their fill zones. Underlay for each character was limited to a light edge-walk to avoid over-stabilizing the fabric between letters, which at this density would cause adjacent character fills to merge at their boundaries.

License

This design is licensed for commercial use on finished physical goods. You may sell embroidered items made with this file without per-item royalty. Digital files, including all included formats, may not be resold, redistributed, or shared in any form, whether modified or unmodified.

Instant Download

Files are available immediately after purchase. This listing includes 1 size in 26 file formats, covering every major home and commercial embroidery machine brand. Download, unzip, and load directly into your machine or embroidery software.
