Pharmacy Symbol Embroidery Design: Bowl of Hygieia Medical Emblem Machine Embroidery File

This Pharmacy Symbol embroidery design reproduces the Bowl of Hygieia, the universally recognized emblem of pharmacy and pharmaceutical practice, as a clean single-color outline machine embroidery file. The entire composition is rendered in a rich purple thread using consistent satin stitch outlines that trace every curve, coil, and structural element of the symbol with precision. At 2.39 x 2.86 inches and 3,538 stitches, this compact design is ideally sized for uniform chest patches, lab coat embroidery, pharmacy staff apparel, and professional healthcare accessories.

What makes this design technically distinct from other outline emblem files in the collection is the continuous path complexity of the serpent form. Unlike filled motifs or simple geometric outlines, the snake body winds through multiple self-crossing loops around the central staff before terminating at the detailed head with open fang detail above the bowl, requiring the digitizing path to navigate overlapping outline segments without producing visible thread pile-up or tension inconsistency at the crossing points.

Design Details

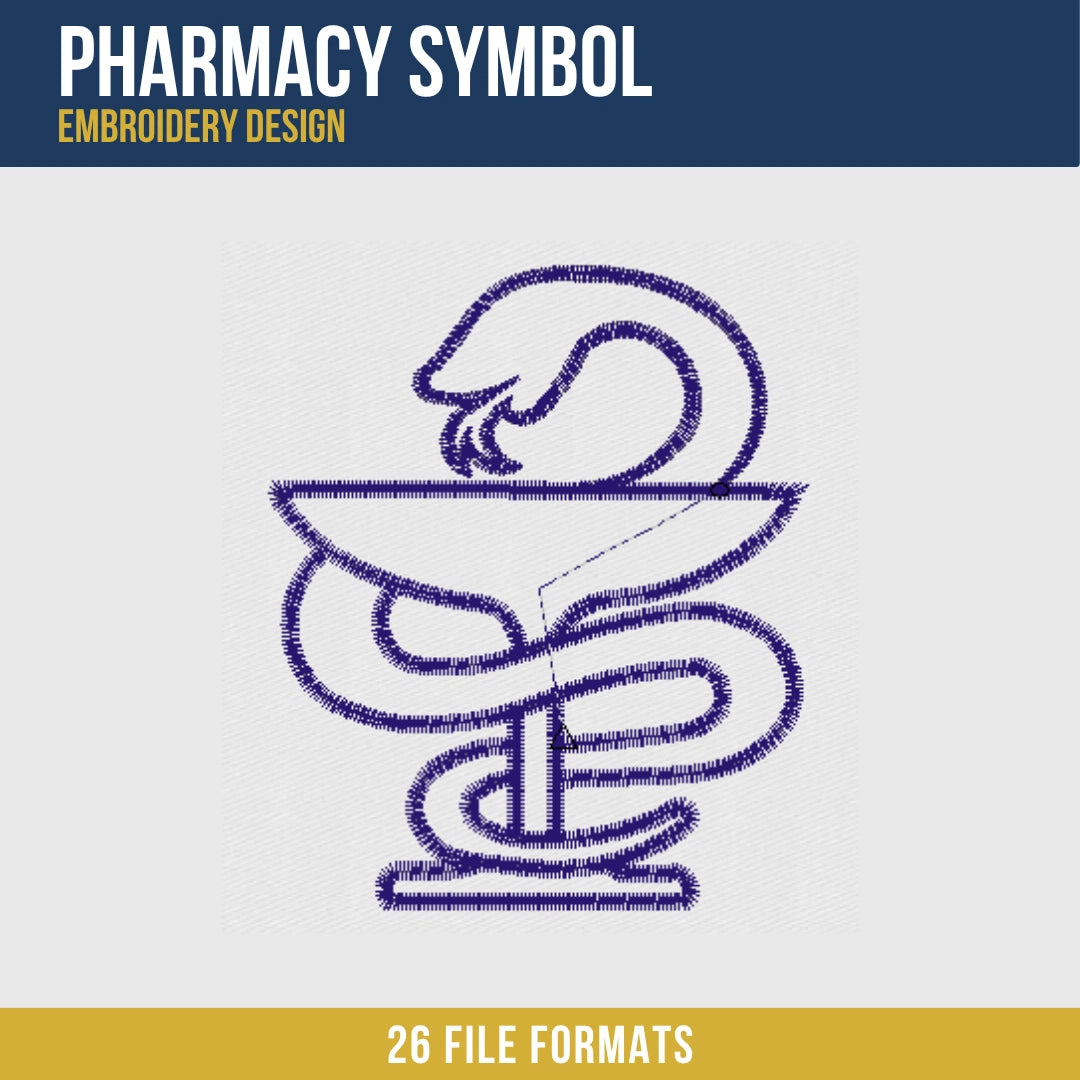

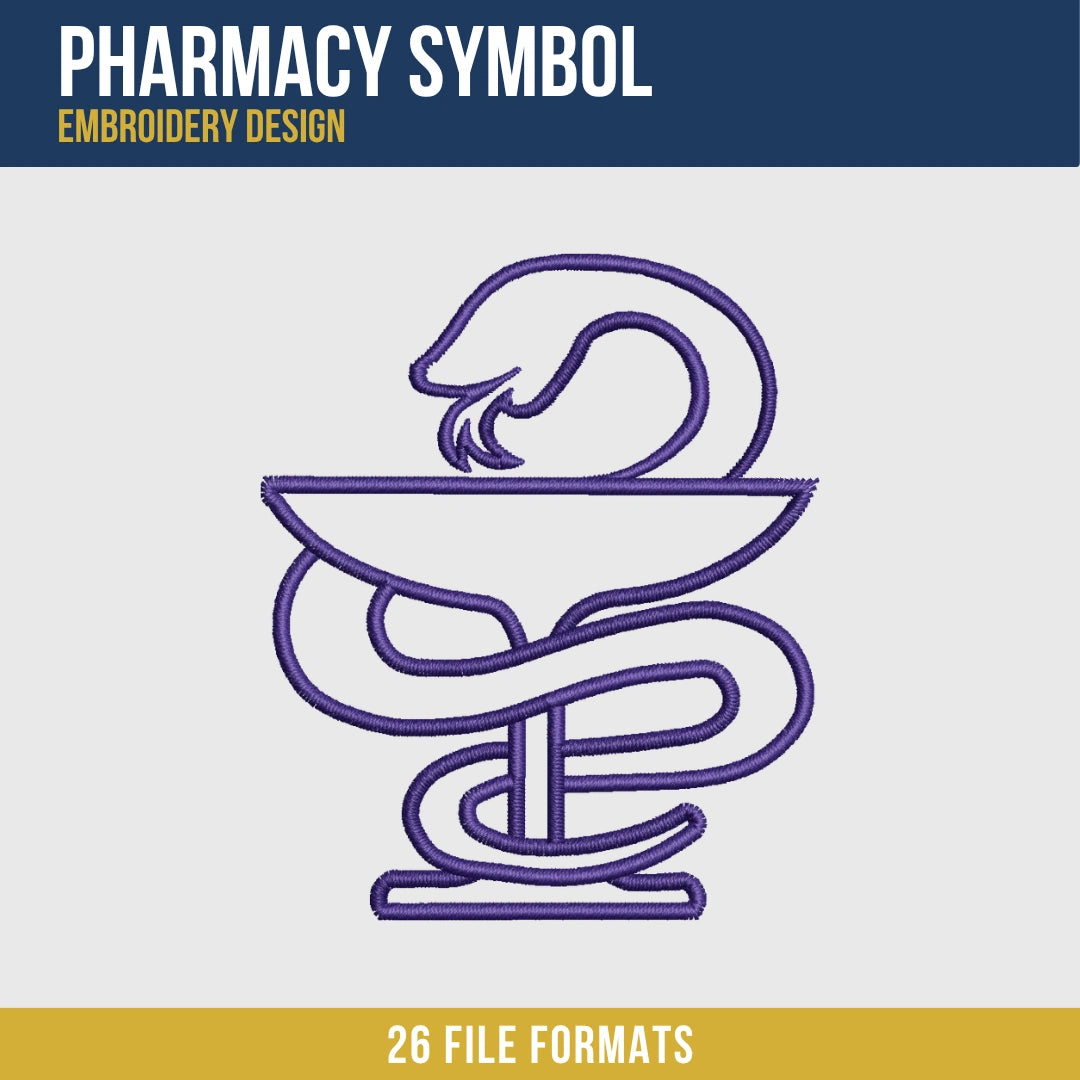

The dominant element is the serpent, which begins at the top of the composition with a detailed head rendered in profile. The head features a slightly open mouth with small extended fang detail, a defined jaw line, and a smooth cranial curve, all outlined in the same consistent satin stitch column width used throughout the design. The body of the serpent descends from the head and winds in a series of broad, flowing S-curve coils around the central vertical staff, crossing over and under itself at multiple points. The coil paths are spaced with enough clearance to remain readable as distinct separate loops rather than blending into a single mass of thread. The central staff is a straight vertical element that passes through the coil intersections and terminates at the top rim of the bowl. The bowl of Hygieia sits at the upper third of the composition, formed by a wide elliptical rim line above and a curved bowl base below, with a flat horizontal rim line spanning the full width. The base of the entire symbol rests on a rectangular footing with rounded corners, outlined in the same continuous satin stitch style. All elements are stitched in a single purple thread with no color changes required.

Size Guide

Formats Included

This design includes 26 file formats compatible with all major home and commercial embroidery machines. Brother and Baby Lock use PES and PEC. Tajima uses DST and DSB. Janome and Elna use JEF and SEW. Husqvarna Viking uses VP3, VIP, SHV, and HUS. Pfaff uses PCS, PCQ, and PCD. Singer uses XXX, 000, and CSD. Bernina software uses ART. Additional formats include 100 (Toyota), CND (Melco/Conde), DGT (Barudan), DSZ (older Tajima), EMD (Elna), EXP (Melco/Bernina), and INF (design info file).

Digitizing Quality

The primary challenge in digitizing this design was routing the serpent body outline through its multiple self-crossing coil loops without producing thread pile-up or visible tension breaks at the intersection zones. Each crossing point required the path to pass cleanly over or under the opposing outline segment, with stitch sequencing structured to maintain consistent column width and thread tension throughout the entire continuous outline run.

At the compact finished size of 2.39 x 2.86 inches, maintaining legibility of fine detail elements such as the fang, the jaw definition, and the serpent head profile required particular care. These narrow forms approach the minimum viable satin stitch width for clean stitchout, so column widths were precisely calibrated to preserve the character of each detail without collapsing into thread mass or producing gaps on standard uniform fabric.

The rounded corner terminations on the rectangular base footing and the elliptical bowl rim were digitized with smooth curve compensation to prevent the stairstepping that commonly appears on small-radius curves in outline embroidery at compact sizes. Stitch density along these curved segments was adjusted to keep the outline visually consistent with the straight segments that connect them.

License

This design is licensed for personal use and the production of finished physical goods for sale. You may stitch this file and sell the finished embroidered items commercially. The digital design files themselves may not be resold, redistributed, shared, or included in any digital product, bundle, or download offering in any format.

Instant Download

Your files are available immediately after purchase with no waiting and no shipping. This listing includes 1 size in all 26 embroidery formats, ready to load directly into your embroidery machine or software. Add to cart and start stitching today.
