Royal Shield Embroidery Design: Heraldic Shield Blank Patch Machine Embroidery File

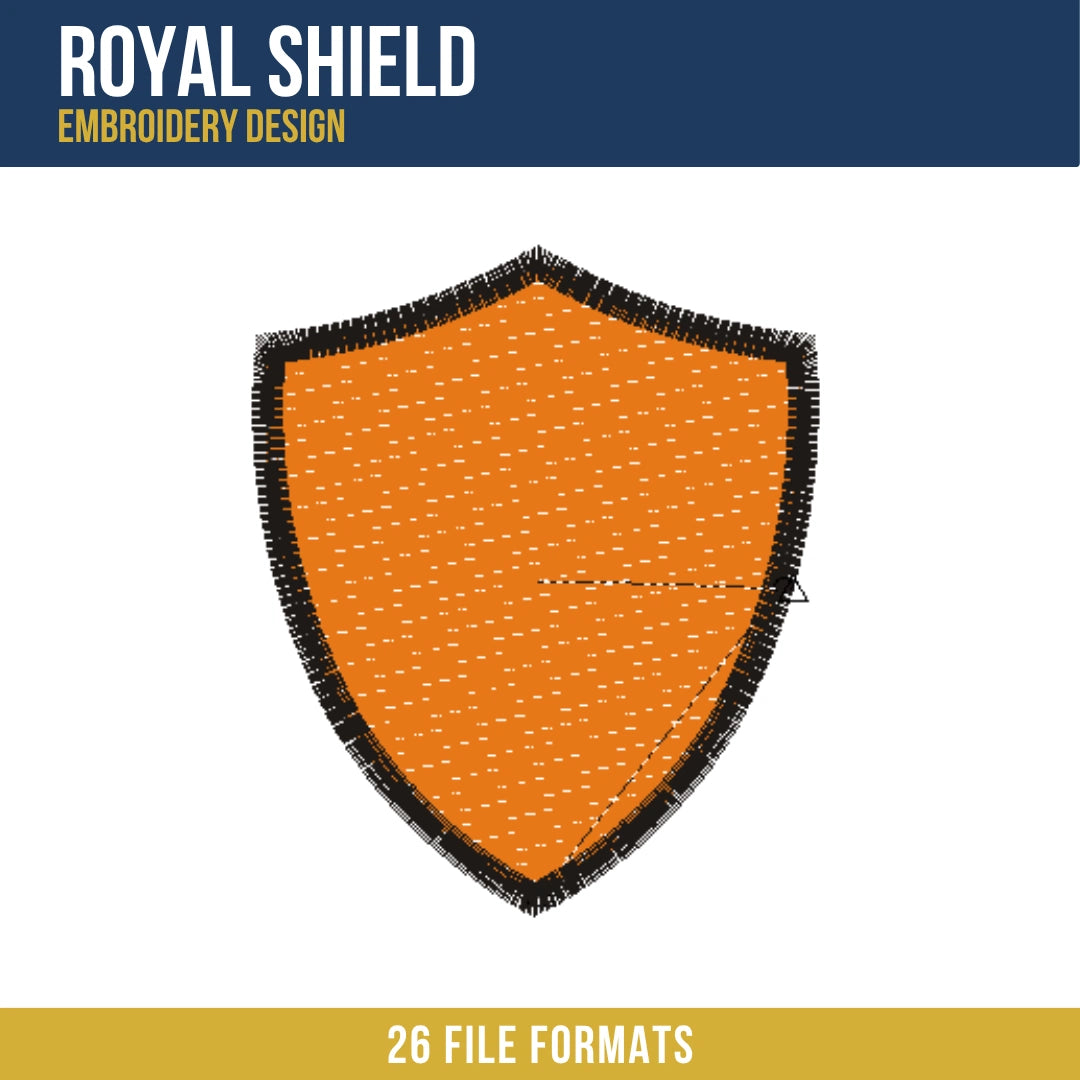

The Royal Shield embroidery design is a two-color heraldic shield blank composition featuring a classic pointed-base shield form filled with a warm amber-gold satin fill and enclosed by a thick dark charcoal satin stitch border that follows the shield silhouette, designed as a clean blank field intended for use as a monogram base, crest background, or standalone decorative patch. The shield form is the traditional European heater shield shape with a flat top edge, curved upper sides angling inward to a central top notch, straight lower sides, and a pointed bottom tip, all rendered with smooth fill stitching and a dimensional satin border. Total stitch count is 5,859 stitches.

What distinguishes this design from other shield or badge embroidery files in a heraldic collection is its intentional blank construction. Where most crest or shield embroidery designs include interior decorative elements such as animals, symbols, or text, this composition delivers only the shield form and border, providing a pre-stitched foundation that can receive a separately stitched monogram, initial, or crest element centered within the amber field. The blank field construction requires the fill surface quality and border geometry to carry the full visual weight of the design without any supporting interior detail.

Design Details

The shield silhouette follows the classic heater shield form. The top edge is flat with a small central notch or cusp at the upper center where the two upper curves meet. The sides curve gently outward from the top corners before angling straight downward toward the lower shield body. The lower portion narrows symmetrically from both sides to a pointed bottom tip. The entire shield perimeter is defined by a thick dark charcoal satin stitch border applied perpendicular to the shield edge, giving the border a smooth, rounded dimensional quality that wraps cleanly around every curve and corner of the silhouette including the pointed lower tip and the upper center notch.

The interior of the shield is filled with a warm amber-gold satin stitch across the full field area. The fill uses a consistent vertical or near-vertical stitch direction across the full shield interior, creating an even, smooth surface that reads as a clean blank field suitable for subsequent text or design stitching. The amber fill is dense enough to provide full fabric coverage while remaining flat enough to serve as a stable background for additional embroidery elements applied over it after the base shield is stitched.

Size Guide

Formats Included

• PES, PEC — Brother, Baby Lock, Bernina
• DST, DSB — Tajima
• JEF, SEW — Janome, Elna
• VP3, VIP, SHV, HUS — Husqvarna Viking
• PCS, PCQ, PCD — Pfaff
• XXX — Singer
• ART — Bernina software
• 000 — Singer/generic
• 100 — Toyota
• CND — Melco/Conde
• CSD — Singer/POEM
• DGT — Barudan
• DSZ — Tajima older
• EMD — Elna
• EXP — Melco/Bernina
• INF — design info

Digitizing Quality

The primary technical challenge in this design is achieving a perfectly smooth, flat amber fill surface across the full shield interior without visible pull distortion at the curved upper sides and pointed lower tip. A large filled shape of this silhouette type is subject to uneven pull at its curved and tapered boundary zones, where the fill stitches at the boundary are shorter than those at the center and experience proportionally greater tension. The amber fill uses a structured underlay and a density calibrated to produce a flat, even surface across the full shield area, with boundary-specific pull compensation adjustments at the upper curve zones and the lower tip to prevent visible gathering or puckering at these stress points.

The satin border must follow the shield silhouette precisely through both the gentle upper curves and the sharp pointed lower tip without any visible stitch crowding at the inner concave zones or stitch spreading at the outer convex zones. Curved satin stitch borders require the stitch density to be adjusted continuously around the curve so that stitches neither fan apart on the outer curve edge nor compress together on the inner edge. The upper center notch and the lower pointed tip are the two zones of sharpest curvature on this silhouette, and each requires individual path management to produce a clean corner without excess stitch buildup or an open gap at the apex.

Because this shield is designed as a blank base for subsequent monogram or crest stitching, the fill surface flatness is more critical than it would be for a design with interior decorative elements that could visually mask minor surface irregularities. Any doming, puckering, or uneven stitch texture in the amber fill field would be visible beneath additional stitching applied over it and could affect the appearance of the overlaid element. The fill density and underlay are therefore set to the most stable combination available for the fabric weight range most commonly used for badge and patch embroidery applications.

License

This design is licensed for personal use and small commercial production of finished physical goods. You may sell embroidered items created with this file. The digital files themselves may not be resold, redistributed, shared, or included in any digital product collection.

Instant Download

Files are available immediately after purchase with no waiting and no shipping. This listing includes 1 size in 26 embroidery formats. Complete your purchase and download your full file package directly from your order confirmation.
