Safety First Embroidery Design: Industrial Gear Medical Cross Machine Embroidery File

This Safety First embroidery design combines a green filled industrial gear with a centered white medical cross circle and bold dark text into a compact, high-impact workplace safety emblem machine embroidery file. The composition stacks a gear-and-cross icon above a two-word "SAFETY FIRST" wordmark set on a white rectangular badge, producing a structured three-layer design in green, white, and dark charcoal. At 2.54 x 2.57 inches and 7,169 stitches, the design delivers strong coverage and clear legibility for workwear patches, safety vest embroidery, industrial uniforms, and occupational apparel.

What makes this design technically distinct from other badge and emblem files in the collection is the three-tier stitch layering required within the gear icon alone. The gear body, the white circle border, and the green cross interior must each be stitched as independent filled layers in the correct sequence so each element reads as sitting cleanly in front of the one beneath it, with no color bleed or fill collapse at the boundaries where green, white, and negative space meet across the gear teeth and cross arms simultaneously.

Design Details

The dominant upper element is the industrial gear shape, filled with a dense green thread across its full body including the ten evenly spaced gear teeth around the perimeter. Each tooth is a trapezoidal projection from the main gear disc, with the white satin outline tracing both the outer tooth edges and the inner gear circle boundary to create a clean white border that separates the green fill from the background on all sides. Centered within the gear is a white filled circle that serves as the background for the medical cross. The cross itself is filled in the same green as the gear body, with four equal arms extending to near the circle edge, creating a bold plus sign that reads immediately as a first aid or safety symbol. The cross arms are filled with horizontal satin stitches that sit cleanly within the white circle boundary. Below the gear icon, the wordmark "SAFETY FIRST" is stitched in a bold condensed all-caps typeface in dark charcoal thread, with each letter filled in a dense upright satin column style. The wordmark sits on a white rectangular badge background with a white satin outline border, visually grounding the text and separating it from any fabric color beneath. The overall three-color structure of green, white, and dark charcoal gives the design strong contrast and professional readability.

Size Guide

Formats Included

This design includes 26 file formats compatible with all major home and commercial embroidery machines. Brother and Baby Lock use PES and PEC. Tajima uses DST and DSB. Janome and Elna use JEF and SEW. Husqvarna Viking uses VP3, VIP, SHV, and HUS. Pfaff uses PCS, PCQ, and PCD. Singer uses XXX, 000, and CSD. Bernina software uses ART. Additional formats include 100 (Toyota), CND (Melco/Conde), DGT (Barudan), DSZ (older Tajima), EMD (Elna), EXP (Melco/Bernina), and INF (design info file).

Digitizing Quality

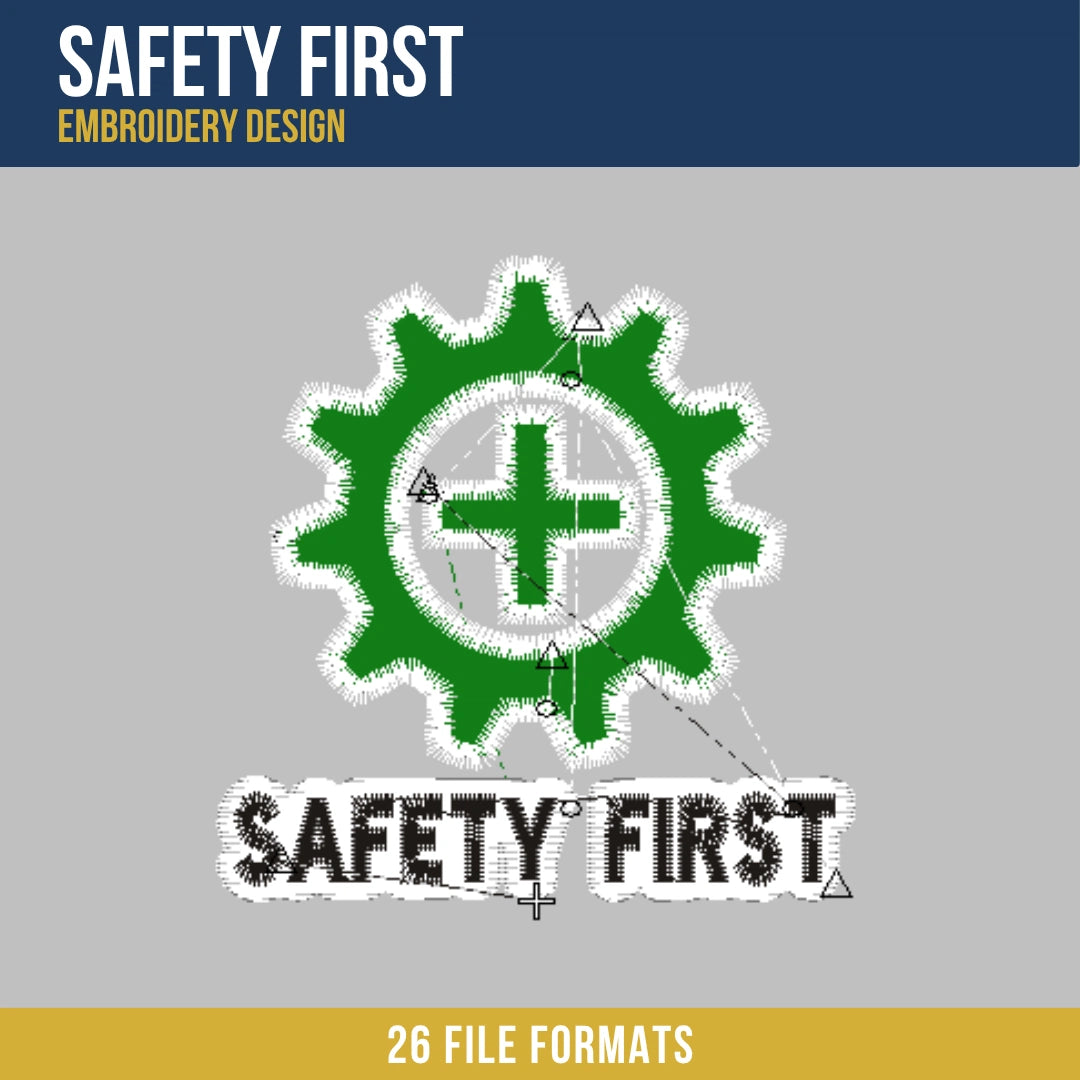

The most demanding digitizing requirement in this design was sequencing the three fill layers within the gear icon correctly. The green gear body must be laid down first, followed by the white circle fill, and then the green cross fill on top, with each layer requiring its own underlay structure to prevent the lower colors from telegraphing through the upper fills. At a finished size just over 2.5 inches, maintaining clean color separation across this many overlapping layers without stiffening the fabric required precise density calibration at each stage.

The gear teeth presented a specific edge definition challenge. Each tooth is a small trapezoidal form with two angled sides and a flat top, and the white satin outline must follow all three edges cleanly without producing corner bulk at the tooth tips or gaps at the base transitions where the tooth meets the main gear body. Stitch angle adjustments were applied at each tooth corner to keep the outline consistent and prevent thread accumulation at the tight angle changes around the perimeter.

The bold condensed letterforms in the "SAFETY FIRST" wordmark required individual column width management across each character to maintain uniform stroke weight and even fill density throughout. The tight letter spacing of the condensed typeface meant that inter-letter jump distances were minimized and trim routing was planned to avoid visible thread tails between characters on the finished badge surface.

License

This design is licensed for personal use and the production of finished physical goods for sale. You may stitch this file and sell the finished embroidered items commercially. The digital design files themselves may not be resold, redistributed, shared, or included in any digital product, bundle, or download offering in any format.

Instant Download

Your files are available immediately after purchase with no waiting and no shipping. This listing includes 1 size in all 26 embroidery formats, ready to load directly into your embroidery machine or software. Add to cart and start stitching today.
