Shadow Varsity 12 Embroidery Design: Outline Jersey Number Machine Embroidery File

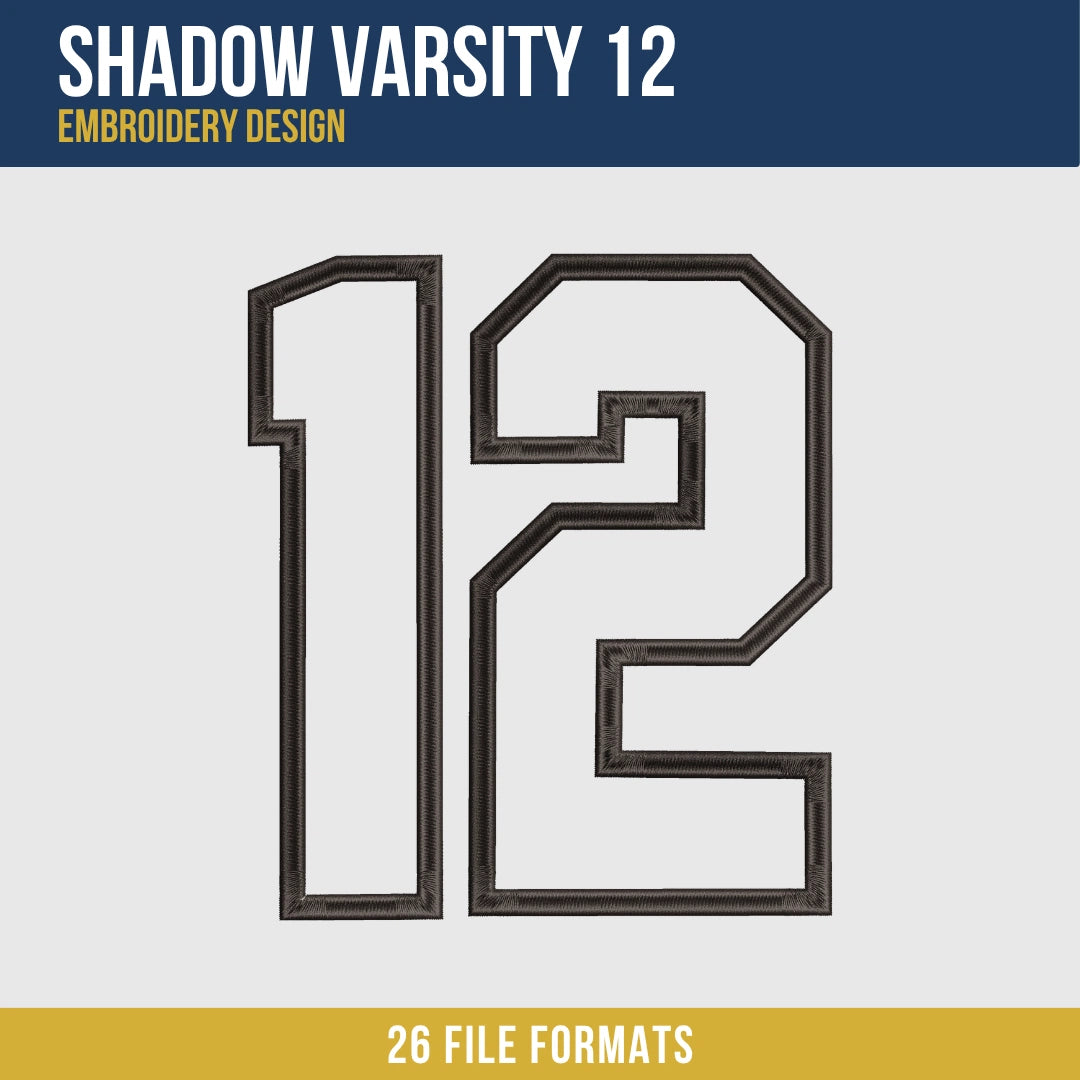

The Shadow Varsity 12 embroidery design is a large-format varsity jersey number pair rendered as pure outline construction in a single dark charcoal thread with no interior fill. The "1" is a clean upright block numeral with a flat top bar, straight vertical stroke, and wide chamfered-corner base, while the "2" is a block varsity figure with chamfered outer corners, a flat top bar, curved upper-to-diagonal mid-stroke, and stepped base bar. Both numerals use a dual-column satin outline construction that leaves the fabric fully exposed between the two border columns and within all interior counter spaces. The entire design is single-color charcoal with no thread changes required. Total stitch count is 16,150 stitches at 6.27 x 7.15 inches.

What makes this design technically distinct from Shadow Varsity 02 in this collection is the numeral pairing geometry. Shadow Varsity 02 pairs a symmetrical oval form with a curved numeral, where both characters share similar stroke complexity and perimeter length. Shadow Varsity 12 pairs a minimal upright stroke, the "1," with the more complex stepped geometry of the "2," creating a significant disparity in perimeter path length and corner count between the two numerals in the same file. This disparity means the stitch sequence must be managed so the simpler "1" does not finish disproportionately faster than the "2" in a way that leaves long jump threads crossing the design mid-completion, while still maintaining consistent satin column width across both numerals despite their very different geometric complexity.

Design Details

The dominant element is the large "1," which occupies the left half of the composition and is the taller of the two numerals, spanning nearly the full vertical height of the design. Its outer contour is a clean rectangular block form with chamfered upper corners on both sides and a wide flat base, all rendered as a wide dark charcoal satin column following the full perimeter. A second parallel satin column traces the inner edge of the numeral stroke, enclosing the white fabric counter within the body of the "1." The stroke is uniformly wide from top to base with no taper, making consistent parallel column tracking the primary demand of this numeral. The "2" sits to the right at a slightly smaller overall scale, its outer silhouette a block varsity form with chamfered corners at the top and stepped geometry at the base. The "2" stroke path begins at the flat top bar, transitions through a broad upper arc that curves into the diagonal mid-stroke, and terminates in the wide stepped base bar. Each segment of the "2" is rendered with the same dual-column outline construction as the "1," with the inner column navigating the inside corners of the step junctions and the arc-to-diagonal transition. Both numerals share the same satin column width so that the outline weight appears visually consistent between the simpler and more complex forms. The white fabric interior is fully exposed throughout both characters, with the design relying on garment ground color for legibility.

Size Guide

Formats Included

This design includes 26 machine embroidery formats compatible with all major brands and software: PES, PEC (Brother, Baby Lock, Bernina) | DST, DSB (Tajima) | JEF, SEW (Janome, Elna) | VP3, VIP, SHV, HUS (Husqvarna Viking) | PCS, PCQ, PCD (Pfaff) | XXX (Singer) | ART (Bernina software) | 000 (Singer/generic) | 100 (Toyota) | CND (Melco/Conde) | CSD (Singer/POEM) | DGT (Barudan) | DSZ (Tajima older) | EMD (Elna) | EXP (Melco/Bernina) | INF (design info).

Digitizing Quality

The primary technical challenge in this design is matching satin column width between the "1" and the "2" across their very different geometric complexity. The "1" is almost entirely straight segments with two chamfered corners, making column width easy to hold consistent. The "2" has curved sections, inside corners, and step junctions where the column must navigate geometry that naturally compresses or expands the effective stitch width if not actively managed. The column width parameters for the "2" were calibrated against the "1" as a reference standard, with each segment of the "2" verified against the "1" stroke width at multiple points to ensure the two numerals read as part of the same typographic system rather than mismatched weights.

The second challenge was the inside corner junctions of the "2" base step. The stepped base bar of the "2" has two inside corners where horizontal and vertical stroke segments meet at 90-degree angles on the inner column path. At each inside corner, the inner satin column must pivot without leaving a gap on the outer face of the corner or accumulating thread bulk on the inner face. Each inside corner was handled with a pivot stitch approach, where the column terminates one stitch short of the corner apex on the incoming segment and restarts one stitch past the apex on the outgoing segment, with a single bridging stitch at the corner point to close the gap and prevent a visible notch in the inner column line.

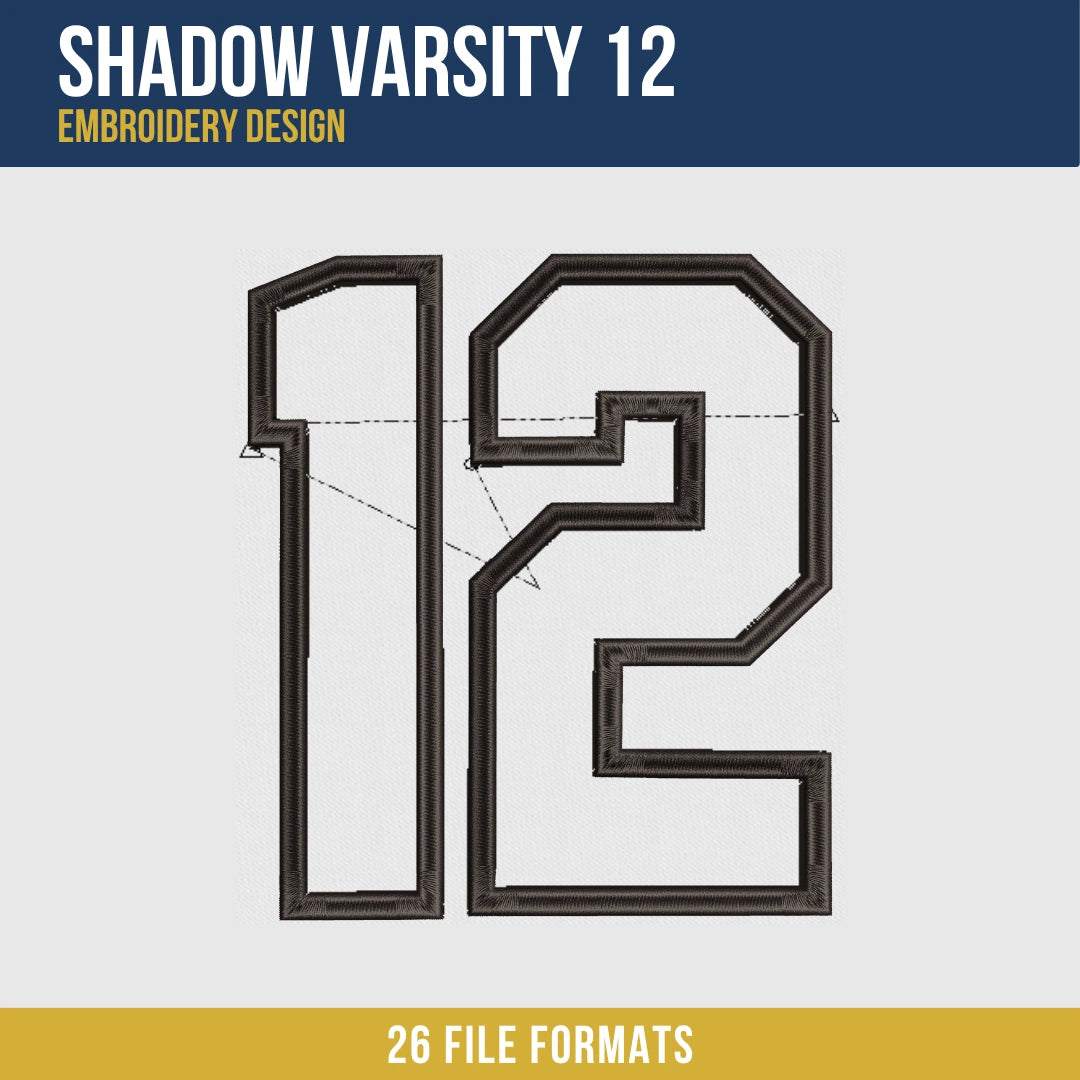

The third challenge was sequencing the two numerals to minimize cross-design jump threads while completing each numeral's dual-column construction in a logical order. Since each numeral requires both an outer and an inner column pass, and the two columns of each numeral must be stitched in close sequence to prevent fabric shift between the outer and inner paths, the stitch order was structured to complete the outer and inner columns of the "1" in immediate succession before moving to the "2," rather than stitching all outer columns first and all inner columns second, which would introduce fabric shift risk between the two passes of each numeral.

License

This file is licensed for use on finished physical goods only. You may stitch and sell embroidered items made from this design. The digital files themselves may not be resold, redistributed, shared, or included in any digital product bundle.

Instant Download

Your files are available immediately after purchase. This listing includes 1 size in all 26 embroidery formats, zipped and ready to transfer directly to your machine or software. No waiting, no requests needed. Add to cart, download, and stitch.
