Shadow Varsity 47 Embroidery Design: Athletic Number Machine Embroidery File

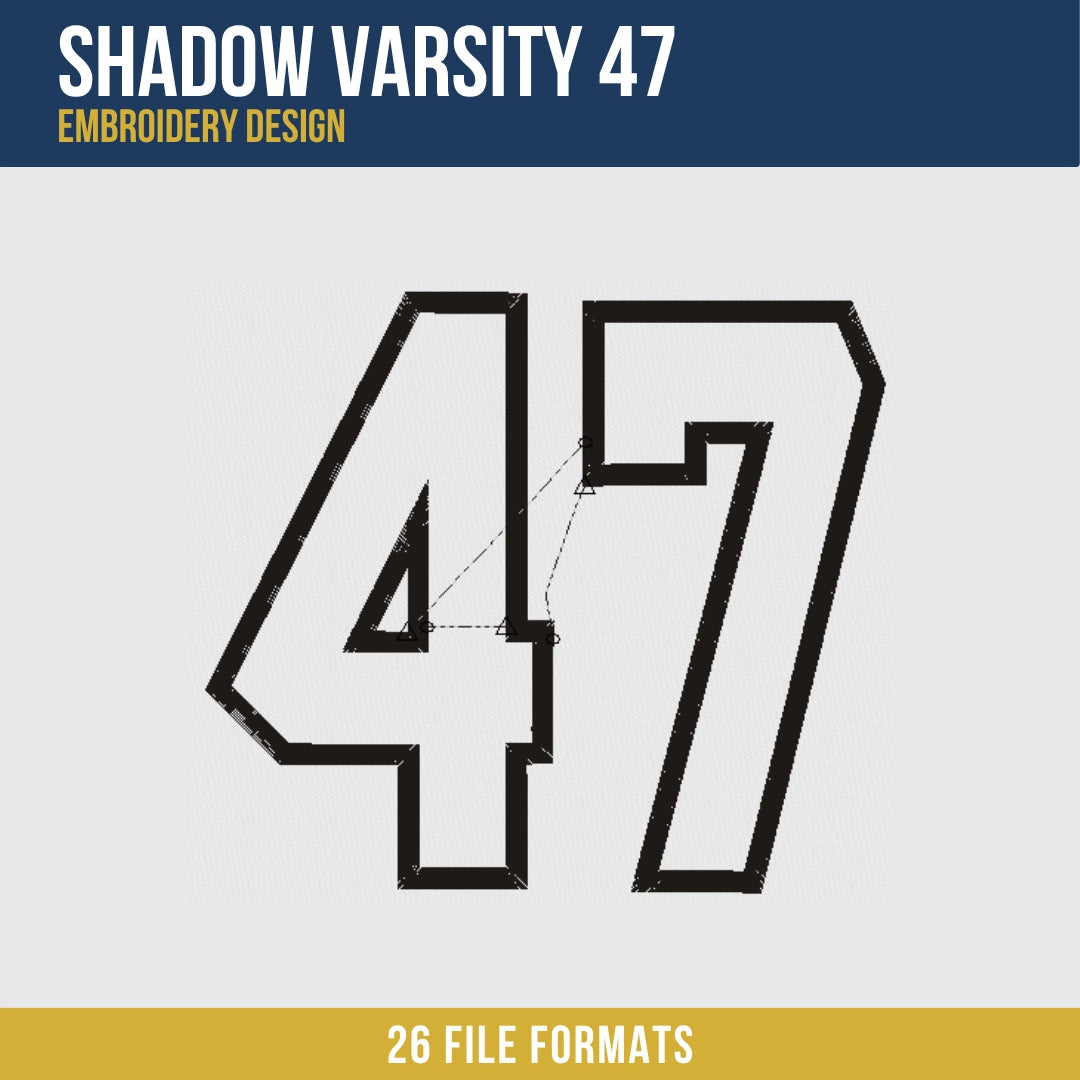

This Shadow Varsity 47 embroidery design pairs the structurally complex "4" with the elegantly simple "7" in the chamfered varsity outline style, built as a single-color machine embroidery file for jersey backs, team uniforms, and large-format sportswear. Both numerals are rendered as open outline forms with a thick dark charcoal satin border, chamfered corners at each direction change, and open interior fabric throughout. At 8.12 x 7.19 inches and 8,436 stitches, this is notably the lowest stitch count design in the Shadow Varsity collection despite its large finished dimensions, a direct result of the "7" being one of the most outline-efficient numerals in the varsity typeface with no interior counter details and a minimal total path length.

What makes this design technically distinct from every other number in this Shadow Varsity collection is the combination of the "4" and "7" producing the two most diagonally dominant numerals in the series side by side. The "4" is built around a diagonal left stroke descending to a horizontal crossbar junction, while the "7" is defined almost entirely by a long uninterrupted diagonal descending stroke. No other number pairing in this collection places two heavy diagonal outline runs adjacently, requiring stitch angle strategy to be consistent and deliberate across both numerals simultaneously.

Design Details

The "4" occupies the left portion of the composition and is one of the most geometrically complex single digits in the varsity number set. Its outline traces a tall narrow vertical right stroke descending the full height of the numeral, a horizontal crossbar extending to the left from the mid-point of this vertical stroke, a diagonal left stroke ascending from the base of the crossbar junction up to the chamfered upper left corner, and a short downward extension at the lower right of the vertical stroke forming the foot of the numeral. An interior counter outline traces the triangular negative space formed between the diagonal left stroke, the crossbar, and the vertical right stroke, creating the characteristic enclosed upper bay of the "4." The "7" occupies the right portion as a structurally minimal numeral by comparison. A broad horizontal top stroke spans the full width with chamfered upper corners and a small notched counter detail at the upper left where the stroke begins its diagonal descent. The primary diagonal stroke of the "7" runs from this upper right corner down to the chamfered lower left tip of the numeral, covering the full diagonal distance of the numeral in a single long uninterrupted border run. No interior counter elements are present in the "7." Both numerals are stitched in deep charcoal thread with no color changes required.

Size Guide

Formats Included

• PES, PEC - Brother, Baby Lock, Bernina
• DST, DSB - Tajima
• JEF, SEW - Janome, Elna
• VP3, VIP, SHV, HUS - Husqvarna Viking
• PCS, PCQ, PCD - Pfaff
• XXX, 000, CSD - Singer
• ART - Bernina software
• 100 - Toyota
• CND - Melco/Conde
• DGT - Barudan
• DSZ - Tajima older
• EMD - Elna
• EXP - Melco/Bernina
• INF - Design info file

Digitizing Quality

The long diagonal descent stroke of the "7" is the single longest uninterrupted diagonal satin run in the Shadow Varsity collection. Across this full run, the satin columns must remain perpendicular to the stroke axis and maintain consistent width and tension without any intermediate direction change to reset the stitching baseline. Underlay architecture beneath this diagonal was specifically engineered to prevent the lateral fabric drift that accumulates across extended diagonal satin runs on woven garment fabrics, keeping the finished stroke straight and even from top tip to bottom tip.

The triangular counter of the "4" presents the most acute interior corner in this collection. Where the diagonal left stroke meets the horizontal crossbar at the lower left of the counter, the interior angle is sharper than any of the right-angle or chamfered corners seen elsewhere in the series. Stitching into and out of this acute interior corner required tight compensation stitches at the corner vertex to ensure full coverage without thread nesting or a visible gap at the narrowest point of the triangular bay.

The crossbar of the "4" creates a T-junction where the horizontal stroke meets the vertical right stroke at a perpendicular intersection. At this junction, the outline path transitions between two different stitch axis orientations in close succession, with the horizontal crossbar columns meeting the vertical stroke columns at 90 degrees. The sequencing at this junction was planned to minimize visible overlap while maintaining coverage continuity across both stroke directions, keeping the intersection reading as a clean right-angle corner rather than a thread accumulation point.

License

This design is licensed for personal use and the production of finished physical goods for sale. You may stitch this file and sell the finished embroidered items commercially. The digital design files themselves may not be resold, redistributed, shared, or included in any digital product, bundle, or download offering in any format.

Instant Download

Your files are available immediately after purchase with no waiting and no shipping. This listing includes 1 size in all 26 embroidery formats, ready to load directly into your embroidery machine or software. Add to cart and start stitching today.
