Watermelon Embroidery Design: Fruit Slice Machine Embroidery File

The Watermelon embroidery design renders a classic triangular watermelon slice in three colors as a compact filled design suited for children's clothing, summer tote bags, kitchen linens, hat patches, and casual accessories. The design is built from a large red satin-fill flesh body in a wedge shape, a curved green rind band running along the bottom arc, and seven dark seed shapes scattered across the red interior in a natural scattered arrangement. All three zones are fully filled with dense stitching, producing a clean, graphic illustration with strong color contrast and clear silhouette at small size. Total stitch count is 2,285 stitches.

What distinguishes this design from other small filled fruit or food motifs is the geometric challenge of the triangular flesh body: unlike circular or oval fruit designs where the fill can radiate from a center point, the watermelon wedge is a true triangle with a straight apex and two straight sides that meet a curved base. This means the fill angle must be consistent across a form that narrows continuously from base to tip, requiring the stitch columns to shorten progressively as they approach the apex without producing density irregularities or a gap at the topmost point.

Design Details

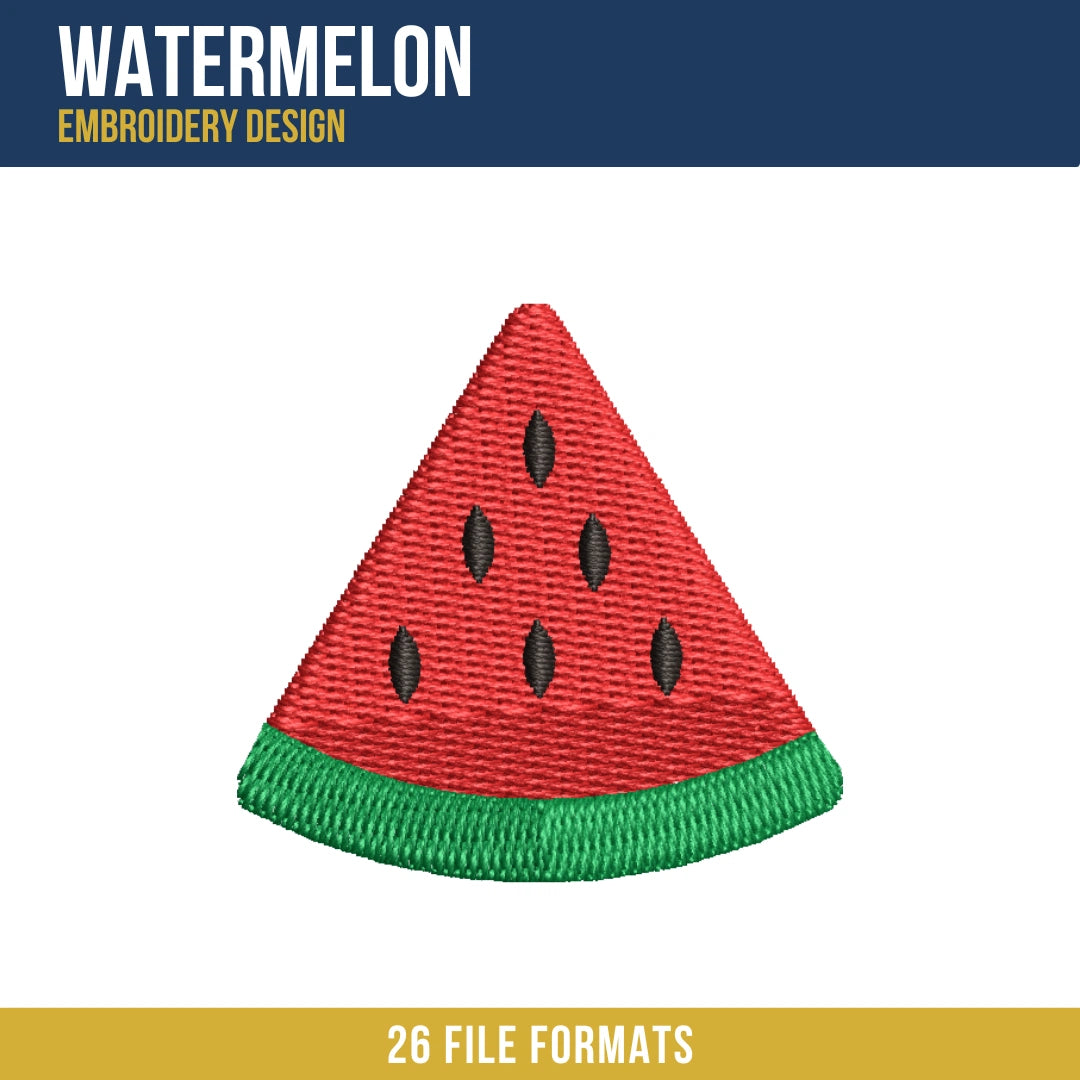

The dominant element is the red flesh body, which fills the upper triangular portion of the design from a pointed apex at the top down to a broad curved base. The fill is a solid bright red rendered with consistent horizontal satin stitching across the full wedge, giving the flesh zone a smooth, uniform surface texture. Distributed across the red fill are seven dark charcoal-black seeds, each shaped as a narrow pointed oval or eye form. The seeds are arranged in a loose triangular scatter pattern with one seed near the top, two in the middle row, and four across the lower portion of the flesh, mimicking a natural seed distribution within a real watermelon cross-section. Each seed is individually filled with dense dark stitching that sits cleanly on top of the red base layer. Along the bottom of the composition, a curved green rind band follows the arc of the slice base, fully filled with bright green satin stitching. The rind is proportionally narrow relative to the flesh body, consistent with the visual scale of a cut watermelon slice.

Size Guide

Formats Included

This design includes 26 file formats compatible with virtually every home and commercial embroidery machine brand: PES, PEC (Brother, Baby Lock, Bernina), DST, DSB (Tajima), JEF, SEW (Janome, Elna), VP3, VIP, SHV, HUS (Husqvarna Viking), PCS, PCQ, PCD (Pfaff), XXX (Singer), ART (Bernina software), 000 (Singer/generic), 100 (Toyota), CND (Melco/Conde), CSD (Singer/POEM), DGT (Barudan), DSZ (Tajima older), EMD (Elna), EXP (Melco/Bernina), and INF (design info).

Digitizing Quality

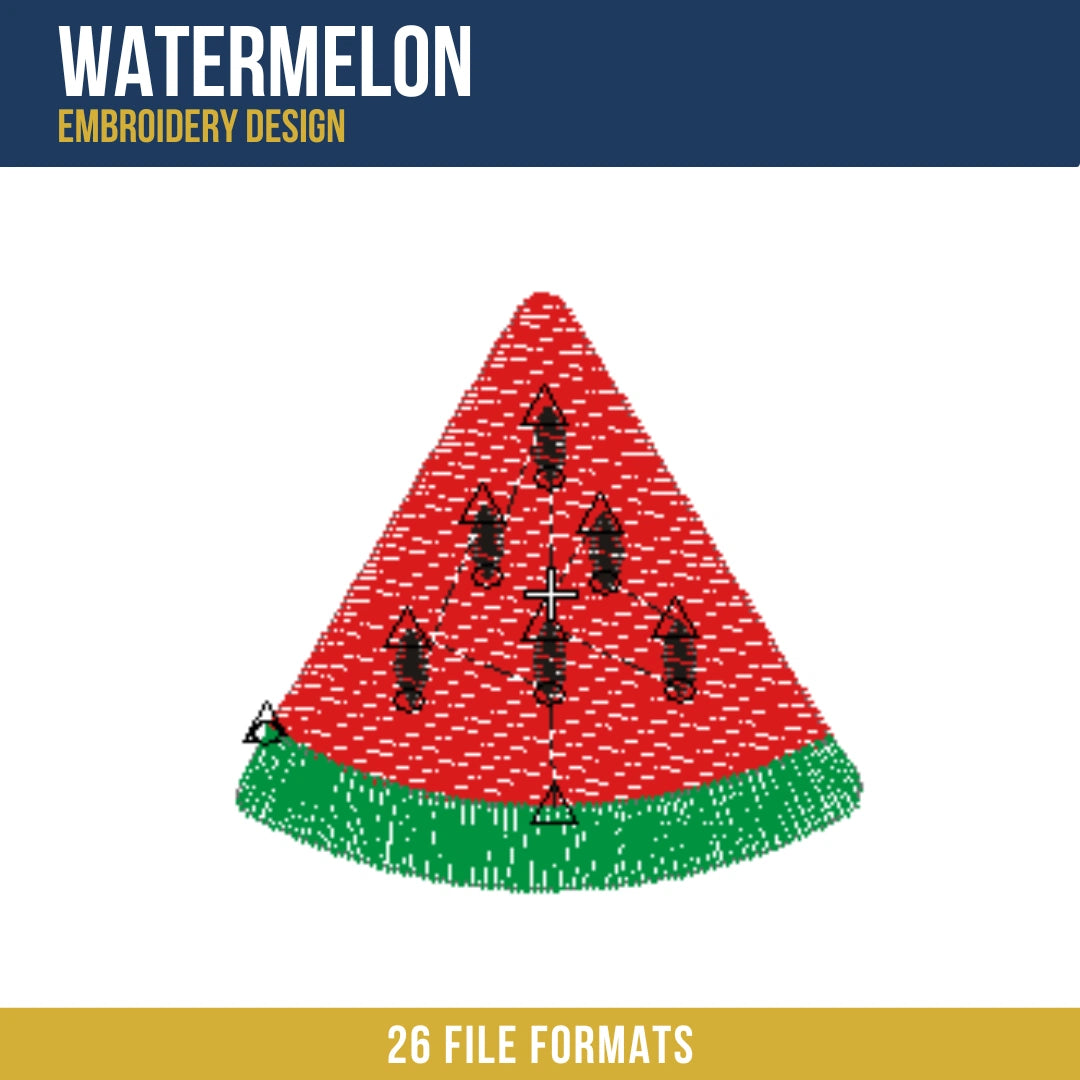

The primary technical challenge in this design is filling the triangular flesh body to a clean apex. As the wedge narrows toward the top point, individual stitch columns must shorten to match the shrinking fill width without the terminal stitches pulling inward and puckering the tip. The digitizing uses a progressive column-shortening path that aligns each column's endpoint precisely with the boundary of the triangle edge at every height level, keeping the apex sharp and the fill density uniform from base to tip.

The second challenge is the color interface between the red flesh fill and the curved green rind. The boundary between these two zones follows a curved arc rather than a straight line, which means pull compensation must account for the outward tension of both fill zones simultaneously along a curved seam. The digitizing sequences the rind after the flesh fill and applies an inward compensation on the rind's upper edge to ensure the green band meets the red fill cleanly around the full arc without a gap or overlap at any point along the curve.

The seven seeds each present a small-scale filled oval challenge within an already-stitched base layer. At this design's overall size, each seed is only a few millimeters long, and the dark fill must fully cover the red background beneath it without the seed edges blurring into the surrounding red. Each seed is digitized with its own edge-walk underlay before the dark fill, stabilizing the seed boundary against the red base and keeping each oval form crisp and distinctly readable on the finished piece.

License

This design is licensed for commercial use on finished physical goods. You may sell items embroidered with this design without royalty or quantity limits. The digital files themselves may not be resold, redistributed, or shared in any format, modified or unmodified.

Instant Download

Your files are available immediately after purchase. This listing includes 1 size and 26 file formats delivered as a single download. Complete checkout and your embroidery files are ready to open in your software right away.
